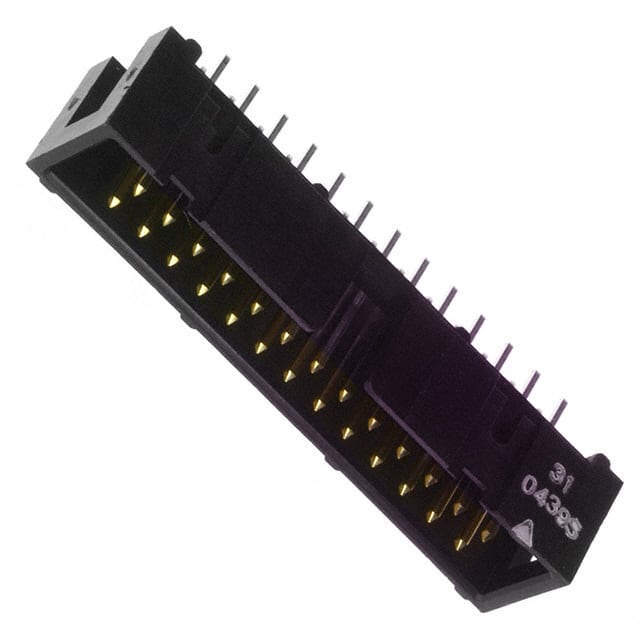

The Omron XG4C-2631 is a 26-position, 2-row box-type plug header from the XG4C series, designed for board-to-board or cable connections. It features a 2.54mm pitch and 2.54mm row spacing, with a shrouded 4-wall design and push-pull fastening. The header is through-hole mounted with solder termination, and the male pin contacts are made of brass with nickel underplating and a tin finish (0.150µm thickness). The insulation is black glass-filled PBT rated UL94 V-0.
Electrical ratings include 3A current and 300VAC voltage, with a contact resistance of 20mΩ max and insulation resistance of 1000MΩ min at 500VDC. The operating temperature range is -55°C to 105°C. The connector includes a keying slot for polarization and conforms to MIL-C-83503 standards.
This header is suitable for industrial control, automation, and general-purpose interconnection applications where reliable, polarized connections are required. The box-type design provides robust mating with compatible socket connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.26 | $2.26 |
| 10+ | $2.19 | $2.19 |
| 25+ | $2.07 | $2.07 |
| 50+ | $1.50 | $1.50 |
| 70+ | $1.44 | $1.44 |
| 280+ | $1.36 | $1.36 |
| 560+ | $1.31 | $1.31 |
| 2,520+ | $1.09 | $1.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 26 positions arranged in 2 rows.
The current rating is 3A per contact.
The voltage rating is 300VAC.
Through hole with solder termination.
Yes, the datasheet states RoHS compliant.
-55°C to 105°C.
