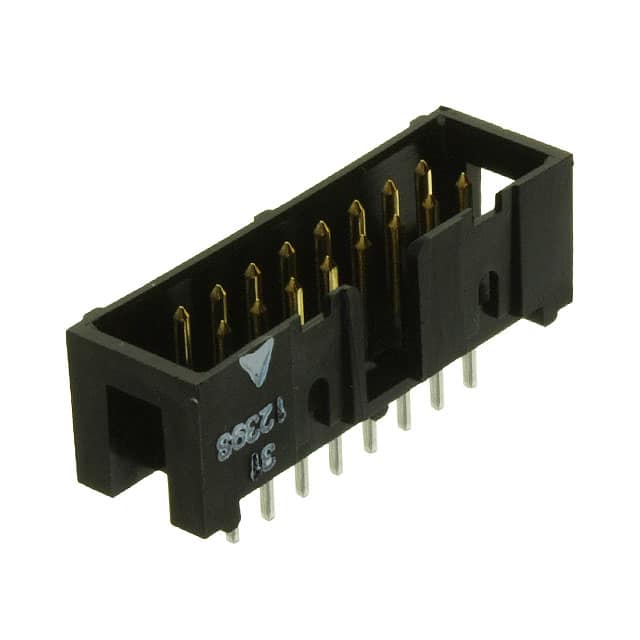

The Omron XG4C-1631 is a box-type plug header from the XG4C series, designed for board-to-board or cable connections. It has 16 positions arranged in 2 rows with a standard 2.54mm pitch and row spacing. The connector features a shrouded 4-wall design with a keying slot for polarization and a push-pull fastening mechanism.
This through-hole header uses square male pin contacts made of brass with a nickel underlayer and a tin finish. The contact finish thickness is 5.90 microinches. The black insulation is molded from glass-filled Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating. The insulation height is 8.51mm, and the overall contact length is 12.19mm.
Electrically, the XG4C-1631 is rated for 3A of current and 300V of voltage. It has an operating temperature range of -55°C to 105°C. The datasheet indicates the part is RoHS compliant. This connector is suitable for a wide range of industrial and commercial applications requiring a reliable, polarized interconnection.
