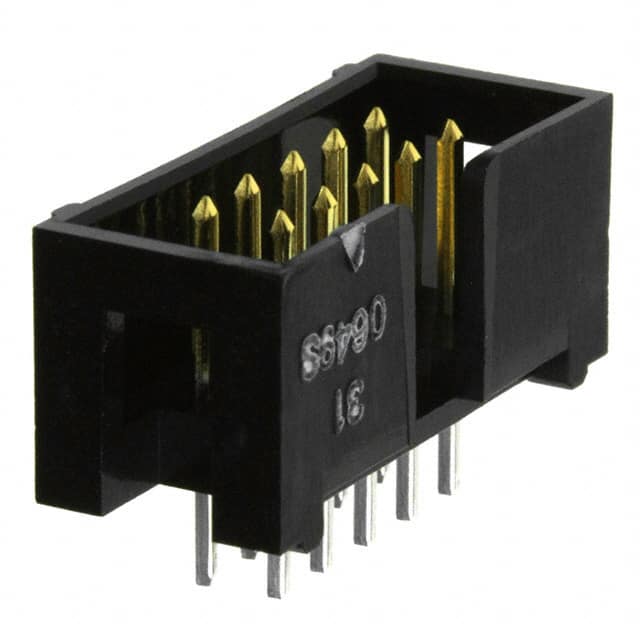

The Omron XG4C-1031 is a 10-position, 2-row shrouded header with 2.54mm (0.100") pitch, designed for through-hole mounting and solder termination. It features male square pins with tin-plated brass contacts and a nickel underplate. The insulation is black glass-filled PBT rated UL94 V-0. The header includes a keying slot for alignment and polarization, and is part of the XG4 series conforming to MIL-C-83503 standards.
Electrical ratings include 3A current and 300V voltage, with a contact resistance of 20 mΩ max, insulation resistance of 1000 MΩ min, and dielectric strength of 500 VAC for 1 minute. The operating temperature range is -55°C to 105°C. Mechanical durability is rated for 50 insertion cycles with an insertion force of 1.96 N max per contact and removal force of 0.39 N min.
This connector is suitable for board-to-board or cable applications and is compatible with shrouded locking plugs from the XG4 family. The through-hole design provides reliable mechanical retention and solder joint integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.09 | $1.09 |
| 10+ | $1.04 | $1.04 |
| 25+ | $0.98 | $0.98 |
| 50+ | $0.93 | $0.93 |
| 100+ | $0.88 | $0.88 |
| 300+ | $0.78 | $0.78 |
| 600+ | $0.73 | $0.73 |
| 1,050+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows.
2.54mm (0.100 inch).
3A.
300V.
Through-hole with solder termination.
-55°C to 105°C.
20 milliohms maximum (at 20 mV, 100 mA).
