| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | 1712 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

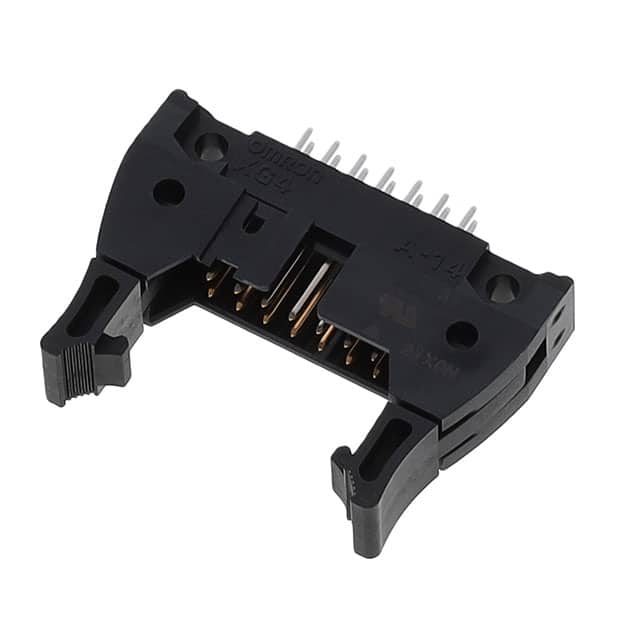

The Omron XG4A-1431 is a 14-position, 2-row, through-hole male pin header from the XG4A series of MIL-spec compliant flat cable connectors. It features a 2.54mm pitch and row spacing, a fully shrouded 4-wall design, and long latch lock/eject hooks for secure mating with compatible sockets.
This connector is rated for 3A per contact and 300VAC, with a contact resistance of 20 mΩ maximum. The insulation is made of glass-filled PBT (UL94 V-0) and the contacts are brass with a tin finish. The operating temperature range is -55°C to 105°C.
Designed for board-to-cable/wire applications, the XG4A-1431 includes a keying slot and mounting flange for accurate alignment and secure attachment. It conforms to MIL-C-83503 standards, ensuring compatibility within the MIL-spec ecosystem.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.57 | $1.57 |
| 10+ | $1.52 | $1.52 |
| 25+ | $1.45 | $1.45 |
| 50+ | $1.14 | $1.14 |
| 80+ | $1.10 | $1.10 |
| 240+ | $1.03 | $1.03 |
| 1,040+ | $0.92 | $0.92 |
| 2,560+ | $0.89 | $0.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The XG4A-1431 has 14 positions, all loaded, in 2 rows.
The pitch is 2.54mm (0.100").
The current rating is 3A per contact.
The voltage rating is 300V.
The mounting type is through hole.
The operating temperature range is -55°C to 105°C.
The database specifies a Tin contact finish, but the datasheet suggests Gold plating for the XG4A series. Verification with the manufacturer is recommended.
