| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

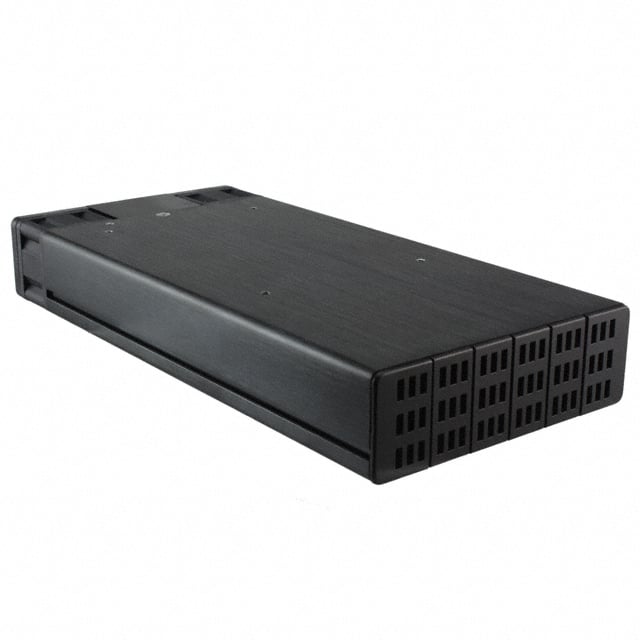

The Advanced Energy XFCS01 is a high-reliability, COTS AC DC configurable power supply chassis delivering up to 1000W of power. It operates across a wide input voltage range of 85 to 264 VAC and offers an efficiency of up to 91%. Designed for demanding applications, this chassis features a ruggedized and conformal coated construction, meeting MIL-STD-810G for shock and vibration, and MIL-STD-461F for EMC.
The operating temperature range is -55°C to 70°C with derating, making it suitable for harsh industrial electronics, radar systems, and test and measurement equipment. The compact 1U height (40.40mm) and dimensions of 268mm x 127mm allow for efficient integration into various systems. It supports field-configurable outputs and includes standard protection features like OVP, OTP, and OCP.
This power supply chassis is designed for plug-and-play power, allowing for fast custom configuration. It provides flexibility with series/parallel output options for higher voltages and currents, and parallel powerpacs for increased power. Safety agency approvals include CE and cURus.
The XFCS01 chassis provides a maximum power output of 1000W.
The XFCS01 operates within a temperature range of -55°C to 70°C with derating.
The XFCS01 chassis has a height of 40.40mm, a length of 268.0mm, and a width of 127.0mm.
Yes, the XFCS01 meets the MIL-STD-810G standard for shock and vibration.
The XFCS01 accepts an input voltage range of 85 to 264 VAC.
The XFCS01 power supply chassis offers an efficiency of up to 91%.
