XF2W-2415-1A Omron XF2W-2415-1A is a 24-position FPC connector with 0.5mm pitch, right angle surface mount, gold contacts, rated 0.5A and 50V.
Mfr Part #:

XF2W-2415-1A

Available from 1 distributors
Mfr Name: Omron
Omron
Omron XF2W-2415-1A is a 24-position FPC connector with 0.5mm pitch, right angle surface mount, gold contacts, rated 0.5A and 50V.
✓ Total Stock: 5 pcs

XF2W-2415-1A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XF2W-2415-1A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
Contact Resistance
Current Rating
FFC, FCB Thickness
Flat Flex Type
Halogen Free
Height Above Board
Housing Material
Insulation Resistance
Lead Spacing
Lead Style
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
SVHC Present
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

XF2W-2415-1A Description

Short technical summary and product information.

The Omron XF2W-2415-1A is a rotary backlock FPC connector with 0.5mm pitch and 24 positions. It features dual-sided top and bottom contacts for secure connections. The connector is rated for 0.5A AC/DC and 50V AC/DC, with contact resistance of 60 mΩ max and insulation resistance of 100 MΩ min. It operates over -30°C to 85°C. The housing is made of halogen-free LCP (UL94 V-0). The connector is surface mount right angle, with a height above board of 1.12mm. It accepts FPC thickness of 0.3mm. The locking mechanism is rotary lock/backlock. Packaging is tape and reel with 2000pcs per reel. The connector is RoHS compliant and halogen-free.

XF2W-2415-1A Quick Information

Product Type: FPC Connector
Series: XF2W

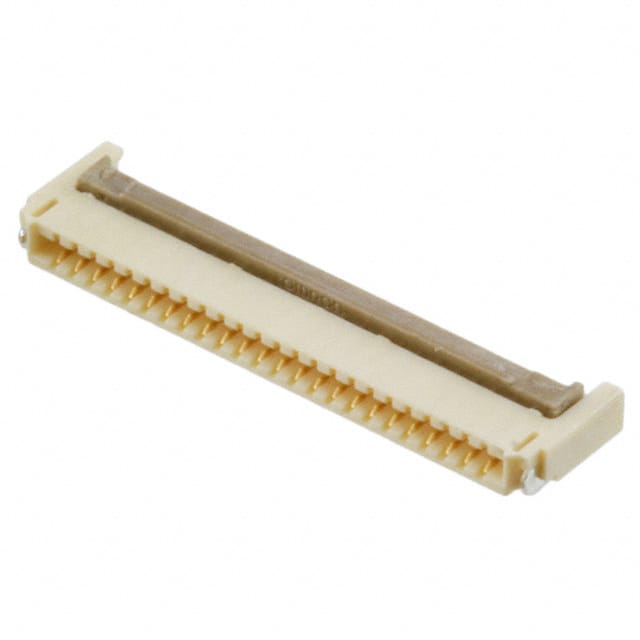

Canonical Name: Omron XF2W-2415-1A FPC Connector, 24 Position, 0.5mm Pitch, Right Angle, Dual Contact
Subcategory: FFC, FPC Connector Assemblies

XF2W-2415-1A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

XF2W-2415-1A Features

  • 24 positions with 0.5mm pitch.
  • Rotary lock backlock mechanism.
  • Gold-plated dual-sided contacts.
  • Rated 0.5A and 50V.
  • Surface mount right angle mounting.

XF2W-2415-1A Applications

  • Used in FPC/FFC connector assemblies.
  • Ideal for compact electronic devices.
  • Suitable for consumer electronics.

XF2W-2415-1A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the XF2W-2415-1A have?

24 positions.

What is the pitch of this connector?

0.5 mm.

What is the current rating?

0.5 A AC/DC.

What is the voltage rating?

50 V AC/DC.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-30°C to 85°C.

Is the connector RoHS compliant?

Yes, RoHS compliant.
