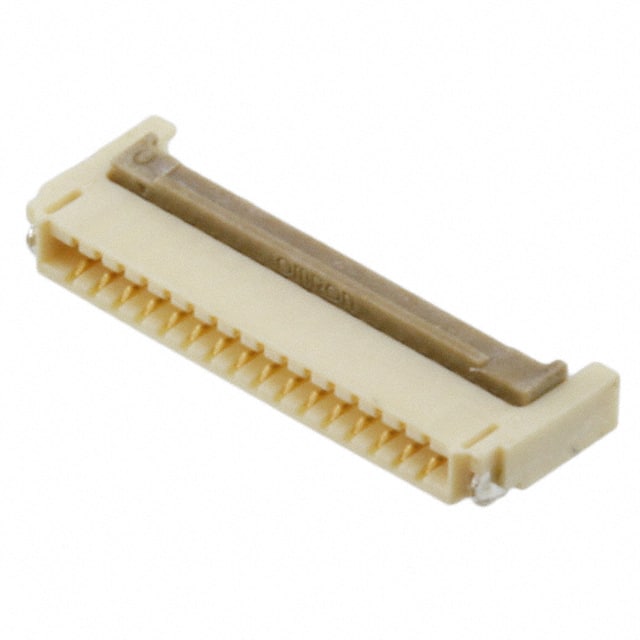

The Omron XF2W-1615-1A is a rotary backlock FPC connector from the XF2W series, offering a 0.5mm pitch and a low profile (1.12mm height above board). It features dual-sided contact design to reduce component count and a wide molding wall on the rear bottom for greater board design freedom. The connector supports an FPC/FFC thickness of 0.30mm and provides reliable electrical performance with a rated current of 0.5A and a rated voltage of 50V. Contact resistance is 60mΩ maximum, insulation resistance is 100MΩ minimum, and dielectric strength is 250V AC for 1 minute. The operating temperature range is -30°C to 85°C. The housing and actuator are made of halogen-free LCP with UL94 V-0 flammability rating. The contacts are copper alloy with gold plating, and the termination style is solder. Packaging is tape and reel with 2000 pieces per reel.
The pitch is 0.5 mm.
-30°C to 85°C.
0.5 A.
50 V.
Surface Mount, Right Angle.
60 mΩ maximum at 20 mV DC, 100 mA.
0.30 mm.
