| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Insertion Durability | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

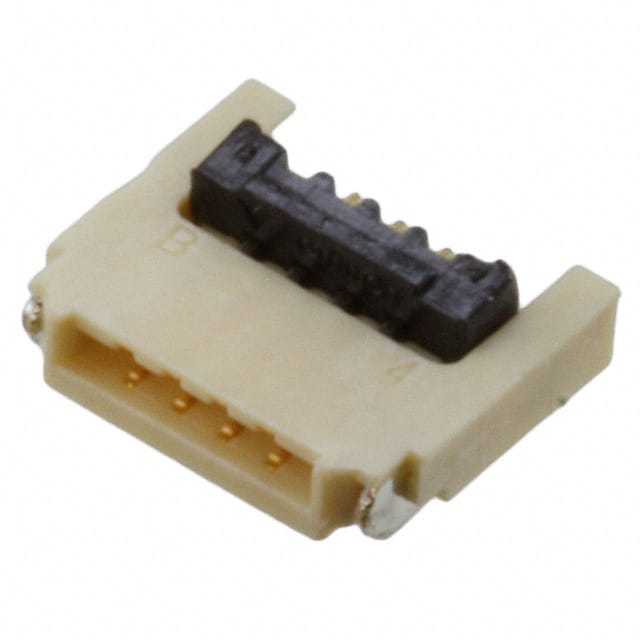

The Omron XF2U-0415-3A is a 4-position FPC connector from the XF2U series, featuring a 0.5mm pitch and a right-angle surface mount design. It utilizes a rotary backlock mechanism for secure cable retention and dual-sided contacts to reduce component count. The connector accepts 0.2mm thick FPC cables with tapered ends.
Key specifications include a current rating of 0.5A, voltage rating of 50V, contact resistance of 60 mΩ maximum, and insulation resistance of 100 MΩ minimum. The operating temperature range is -30°C to 85°C. The housing and actuator are made of halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
The connector has a height above board of 0.88mm and is supplied in tape and reel packaging with 3000 pieces per reel. It is RoHS compliant and halogen free per Omron standards.
The XF2U-0415-3A has 4 positions.
The pitch is 0.5mm (0.020 inches).
The current rating is 0.5A AC/DC.
The voltage rating is 50V AC/DC.
The mounting type is surface mount, right angle.
The operating temperature range is -30°C to 85°C.
The standard packaging quantity is 3000 pieces per reel.
