Mfr Part #:

XF2M-4515-1A

Mfr Name: Omron

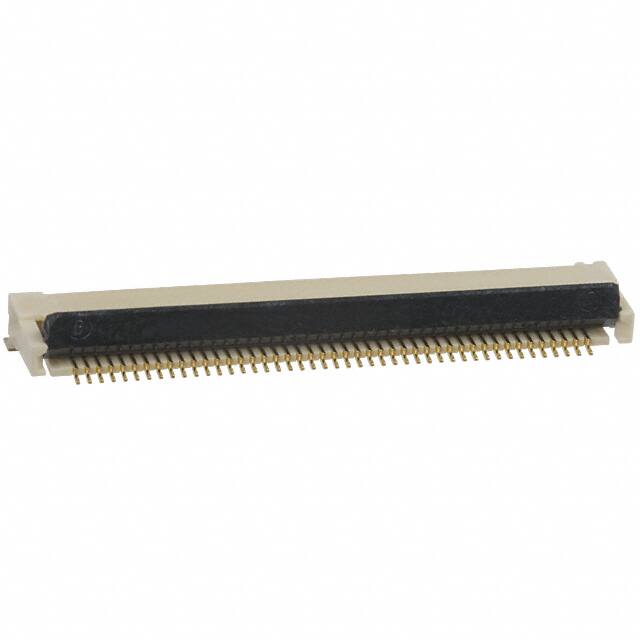

Omron XF2M-4515-1A is a 45-position, 0.50mm pitch FPC connector with surface mount, right angle termination and gold-plated contacts.

✓ Total Stock: 18,004 pcs

$ Price Range: $1.89 - $3.20

XF2M-4515-1A Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	16,000 pcs On Request	16000 pcs	On Request	1	On Request	On Request	20+	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,000 pcs On Request	2000 pcs	On Request	1	On Request	On Request	16+	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	4 pcs On Request	4 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

XF2M-4515-1A Description

Short technical summary and product information.

The Omron XF2M-4515-1A is a 45-position FPC connector featuring a 0.50mm pitch and a right-angle surface mount design. It employs a rotary backlock locking mechanism for secure FPC retention and positive insertion feedback. The connector supports FPC cables with a thickness of 0.30mm.\n\nElectrical ratings include a current rating of 0.5A AC/DC, a voltage rating of 50V, and a maximum contact resistance of 50 milliohms. The operating temperature range is -30°C to 85°C. The housing and actuator are molded from halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.

XF2M-4515-1A Quick Information

Product Type: FFC/FPC Connector

Series: XF2M

Canonical Name: Omron XF2M-4515-1A FPC Connector, 45 Positions, 0.50mm Pitch, Right Angle SMT

Subcategory: FFC/FPC Connector Assemblies

XF2M-4515-1A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

XF2M-4515-1A Estimated Pricing

Qty	Low	High
1+	$3.20	$3.20
10+	$2.72	$2.72
25+	$2.43	$2.43
100+	$2.31	$2.31
250+	$2.14	$2.14
500+	$2.07	$2.07
1,000+	$1.91	$1.91
1,500+	$1.89	$1.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

XF2M-4515-1A Features

45 positions with 0.50mm pitch spacing.
Surface mount right angle termination style.
Gold plated copper alloy contacts.
Rotary backlock locking mechanism.
Halogen-free LCP housing, UL94 V-0 rated.

XF2M-4515-1A Applications

Suitable for compact portable electronic devices.
Used in FPC cable interconnection for displays.
Ideal for space-constrained PCB layouts.
Applicable in consumer and industrial electronics.

XF2M-4515-1A FAQs

6 frequently asked questions generated from this part’s specifications.

What is the pitch of the XF2M-4515-1A connector?

The pitch is 0.50mm (0.020").

What is the current rating of the XF2M-4515-1A?

The rated current is 0.5A AC/DC.

What is the operating temperature range?

The operating temperature range is -30°C to 85°C.

What type of locking mechanism does the XF2M-4515-1A use?

It uses a rotary lock, backlock locking feature.

What is the mounting type for this connector?

Surface Mount, Right Angle.

What is the voltage rating of the XF2M-4515-1A?

The voltage rating is 50V.

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Omron
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type	Tapered
Connector	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Resistance	50 mΩ max. (at 20 mV DC max., 100 mA max.)
FFC, FCB Thickness	0.30mm
Flat Flex Type	FPC
Halogen Free	Yes
Height Above Board	0.083" (2.10mm)
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Insulation Resistance	100 MΩ min. (at 250 V DC)
Locking Feature	Rotary Lock, Backlock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	45
Operating Temperature	-30°C ~ 85°C
Pitch	0.50mm (0.020")
Rated Current	0.5 A AC/DC
SVHC Present	Not Present
Tape & Reel	Yes
Termination	Solder
Voltage Rating	50V
