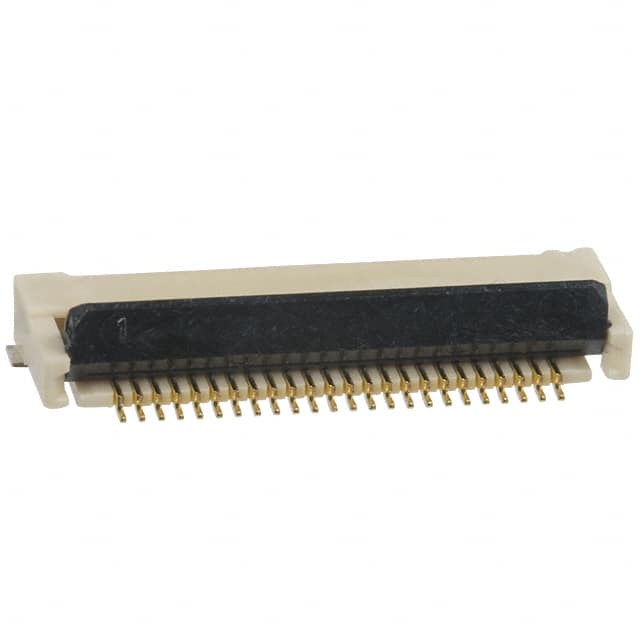

The Omron XF2M-2415-1A is a 24-position FPC connector from the XF2M series, featuring a 0.5mm pitch and surface mount right angle design. It accepts 0.30mm thick FPC/FFC cables with tapered ends and provides dual-sided contacts (top and bottom) for reliable electrical connection. The connector incorporates a rotary backlock locking mechanism that ensures positive cable retention and a tactile confirmation of proper mating.
Electrical ratings include 50V DC voltage, 0.5A AC/DC current, contact resistance of 50 mΩ max., insulation resistance of 100 MΩ min., and dielectric strength of 250V AC for 1 minute. The housing and actuator are molded from halogen-free liquid crystal polymer (LCP) with a flammability rating of UL94 V-0. Operating temperature ranges from -30°C to 85°C.
The connector utilizes gold-plated copper alloy contacts for corrosion resistance and reliability. It is designed for high-density PCB layouts where space is constrained, and the right-angle orientation facilitates cable routing parallel to the board. Insertion durability is rated for 20 cycles (gold-plated type).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.13 | $2.13 |
| 10+ | $1.82 | $1.82 |
| 25+ | $1.62 | $1.62 |
| 100+ | $1.55 | $1.55 |
| 250+ | $1.45 | $1.45 |
| 500+ | $1.38 | $1.38 |
| 1,000+ | $1.22 | $1.22 |
| 1,500+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions.
0.5mm.
0.5A AC/DC.
50V.
Surface mount, right angle.
-30°C to 85°C.
Halogen-free liquid crystal polymer (LCP) with UL94 V-0 flammability rating.
