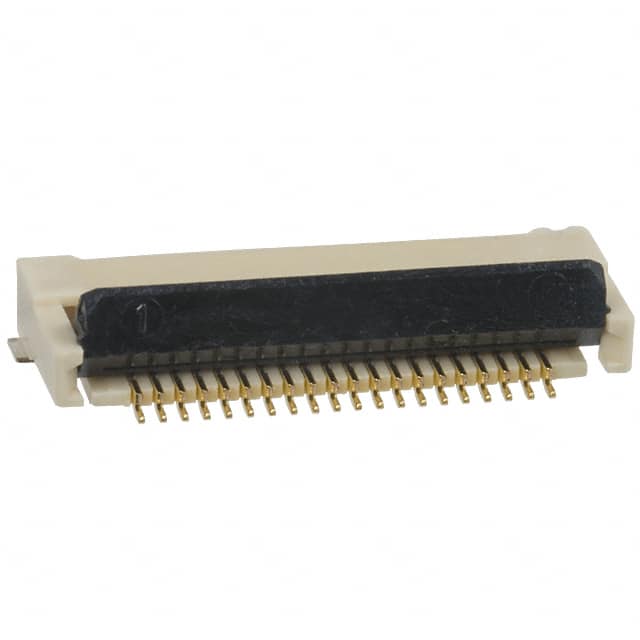

The Omron XF2M-2015-1A is a 20-position FPC connector from the XF2M series, featuring a 0.5mm pitch and a rotary backlock locking mechanism for secure FPC/FFC cable retention. It supports dual-sided top and bottom contacts and accepts a 0.30mm thick FPC/FFC cable with a tapered end.
This connector is rated for 0.5A AC/DC current and 50V AC/DC voltage, with a contact resistance of 50 mΩ and insulation resistance of 100 MΩ. The dielectric strength is 250 VAC for 1 minute. It is designed for surface mount right angle mounting with solder termination, and the housing and actuator are made of halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
The operating temperature range is -30°C to 85°C, and the insertion durability is rated for 20 cycles with gold-plated contacts. The connector height above board is 2.10mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.94 | $1.94 |
| 10+ | $1.69 | $1.69 |
| 25+ | $1.51 | $1.51 |
| 100+ | $1.44 | $1.44 |
| 250+ | $1.33 | $1.33 |
| 500+ | $1.26 | $1.26 |
| 1,000+ | $1.17 | $1.17 |
| 1,500+ | $1.12 | $1.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm.
It has 20 positions.
The rated current is 0.5 A AC/DC.
The voltage rating is 50V.
Surface mount, right angle.
-30°C to 85°C.
Rotary lock, backlock.
