XF2M-1215-1A 12 position FPC connector with 0.5mm pitch, right angle mount, gold-plated contacts, and rotary backlock mechanism.
Mfr Part #:

XF2M-1215-1A

Available from 1 distributors
Mfr Name: Omron
Omron
12 position FPC connector with 0.5mm pitch, right angle mount, gold-plated contacts, and rotary backlock mechanism.
✓ Total Stock: 694 pcs
$ Price Range: $0.96 - $1.65

XF2M-1215-1A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
694 pcs
On Request
694 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XF2M-1215-1A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
Contact Resistance
FFC, FCB Thickness
Flat Flex Type
Halogen Free
Height Above Board
Housing Material
Insulation Resistance
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Rated Current
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

XF2M-1215-1A Description

Short technical summary and product information.

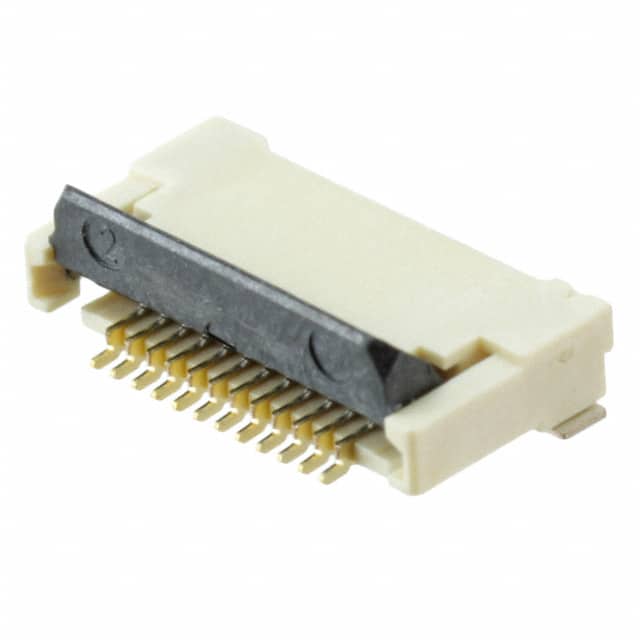

The Omron XF2M-1215-1A is a 12-position FPC connector with a 0.5mm pitch, designed for surface mount right-angle mounting. It features a rotary backlock mechanism that provides secure insertion and a tactile feel for proper connection confirmation.



This connector supports dual-sided contacts for top and bottom connection, and accepts FPC cables with a thickness of 0.30mm. The contacts are gold-plated copper alloy, and the housing and actuator are made of halogen-free liquid crystal polymer (LCP) with UL94 V-0 flammability rating. Operating temperature range is -30°C to 85°C.



Electrical characteristics: rated current 0.5A AC/DC, voltage rating 50V, contact resistance 50 mΩ maximum, insulation resistance 100 MΩ minimum at 250V DC, dielectric strength 250V AC for 1 minute. Insertion durability is rated for 20 cycles for gold-plated type.

XF2M-1215-1A Quick Information

Product Type: FFC/FPC Connector
Series: XF2M
Canonical Name: Omron XF2M-1215-1A 12 Position 0.5mm Pitch FPC Connector
Subcategory: FFC, FPC (Flat Flexible) Connector Assemblies

XF2M-1215-1A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XF2M-1215-1A Estimated Pricing

Qty Low High
1+ $1.65 $1.65
10+ $1.43 $1.43
25+ $1.31 $1.31
100+ $1.25 $1.25
250+ $1.13 $1.13
500+ $1.07 $1.07
1,000+ $0.98 $0.98
1,500+ $0.96 $0.96
3,000+ $0.96 $0.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

XF2M-1215-1A Features

  • 12 position 0.5mm pitch FPC connector.
  • Right angle surface mount with rotary backlock.
  • Gold-plated contacts for reliable connectivity.
  • Halogen-free LCP housing with UL94 V-0 rating.
  • Rated for 50V and 0.5A operation.

XF2M-1215-1A Applications

  • Ideal for compact consumer electronics devices.
  • Used in industrial control modules and sensors.
  • Suitable for automotive infotainment systems.

XF2M-1215-1A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the XF2M-1215-1A have?

12 positions.

What is the pitch of this connector?

0.50mm (0.020 in).

What is the rated current?

0.5 A AC/DC.

What is the voltage rating?

50V.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-30°C to 85°C.

What locking mechanism does this connector use?

Rotary lock, backlock.
