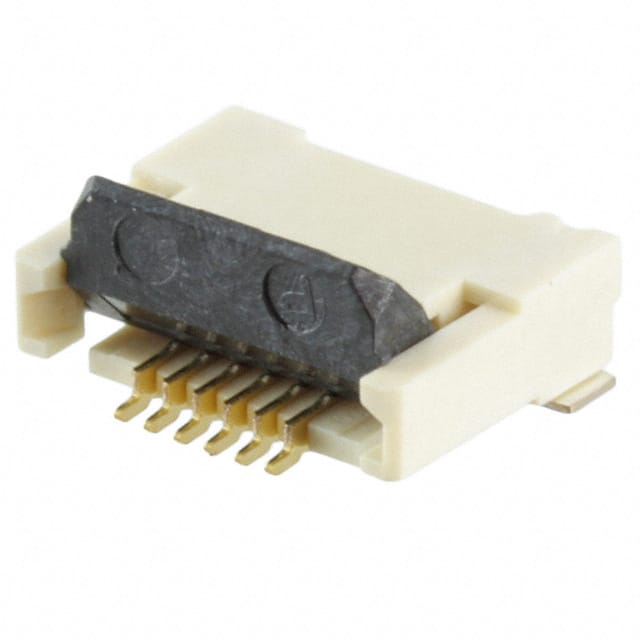

XF2M-0615-1A Omron XF2M-0615-1A is a 6-position FPC connector with 0.5mm pitch, surface mount right angle termination, and gold-plated copper alloy contacts.
Mfr Part #:

XF2M-0615-1A

Available from 2 distributors
Mfr Name: Omron
Omron
Omron XF2M-0615-1A is a 6-position FPC connector with 0.5mm pitch, surface mount right angle termination, and gold-plated copper alloy contacts.
✓ Total Stock: 1,399 pcs
$ Price Range: $0.63 - $1.16

XF2M-0615-1A Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
1,398 pcs
On Request
1398 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XF2M-0615-1A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
Contact Resistance
Current Rating
FFC, FCB Thickness
Flat Flex Type
Halogen Free
Height Above Board
Housing Material
Insulation Resistance
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

XF2M-0615-1A Description

Short technical summary and product information.

The Omron XF2M-0615-1A is a rotary backlock FPC connector designed for reliable FPC/FFC cable insertion with a positive locking feel. It features 6 positions on a 0.5mm pitch and accepts 0.30mm thick FPC/FFC cables. The connector uses dual-sided contacts (top and bottom) for secure electrical connection.



Electrical ratings include 50V AC/DC voltage and 0.5A AC/DC current per contact. Contact resistance is 50 mΩ maximum, insulation resistance is 100 MΩ minimum, and dielectric strength is 250 VAC for 1 minute. The operating temperature range is -30°C to 85°C.



The housing and actuator are molded from halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The connector is RoHS3 compliant and halogen free. Termination is solder to surface mount pads with a right-angle orientation.

XF2M-0615-1A Quick Information

Product Type: FFC/FPC Connector
Series: XF2M
Canonical Name: Omron XF2M Series FPC Connector, 6 Positions, 0.5mm Pitch, Surface Mount Right Angle
Subcategory: Rotary Backlock Connector

XF2M-0615-1A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

XF2M-0615-1A Estimated Pricing

Qty Low High
1+ $1.16 $1.16
10+ $0.99 $0.99
25+ $0.88 $0.88
100+ $0.84 $0.84
250+ $0.78 $0.78
500+ $0.73 $0.73
1,000+ $0.67 $0.67
1,500+ $0.64 $0.64
3,000+ $0.63 $0.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

XF2M-0615-1A Features

  • 6 positions with 0.5mm pitch spacing.
  • Gold-plated copper alloy contacts.
  • Rotary backlock locking mechanism.
  • Halogen free LCP housing and actuator.
  • Rated for 50V and 0.5A operation.

XF2M-0615-1A Applications

  • Used in consumer electronics FPC connections.
  • Suitable for portable device interconnects.
  • Ideal for space-constrained PCB designs.
  • Common in automotive infotainment modules.

XF2M-0615-1A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the XF2M-0615-1A have?

6 positions.

What is the pitch of this connector?

0.5mm.

What is the voltage rating?

50V.

What is the current rating?

0.5 A AC/DC.

What mounting type does this connector use?

Surface mount, right angle.

What is the operating temperature range?

-30°C to 85°C.

Is the XF2M-0615-1A RoHS compliant?

Yes, RoHS3 compliant.
