Mfr Part #:

XF2J-162412A

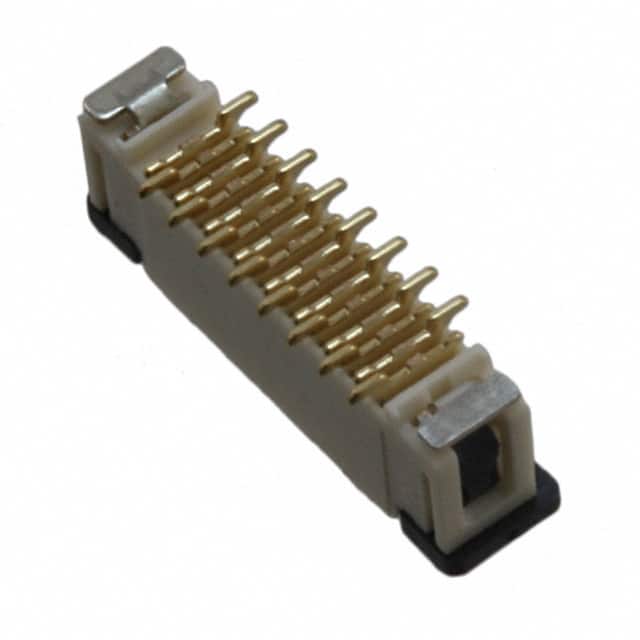

Name: XF2J-162412A
Brand: Omron
SKU: XF2J-162412A

Mfr Name: Omron

Description:

CONN FPC VERT 16POS 0.5MM SMD

Stock on Request

XF2J-162412A Description

Short technical summary and product information.

CONN FPC VERT 16POS 0.5MM SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Omron

CONN FPC VERT 16POS 0.5MM SMD

Omron

CONN FPC VERT 16POS 0.5MM SMD

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Omron
Cable End Type	Tapered
Connector	Contacts, Vertical - 1 Sided
Contact Finish	Gold
Contact Material	Copper Alloy
FFC, FCB Thickness	0.30mm
Features	Zero Insertion Force (ZIF)
Flat Flex Type	FPC
Height Above Board	0.163" (4.15mm)
Housing Material	Polyamide (PA46), Nylon 4/6
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Operating Temperature	-30°C ~ 85°C
Pitch	0.020" (0.50mm)
Termination	Solder
Voltage Rating	50V
