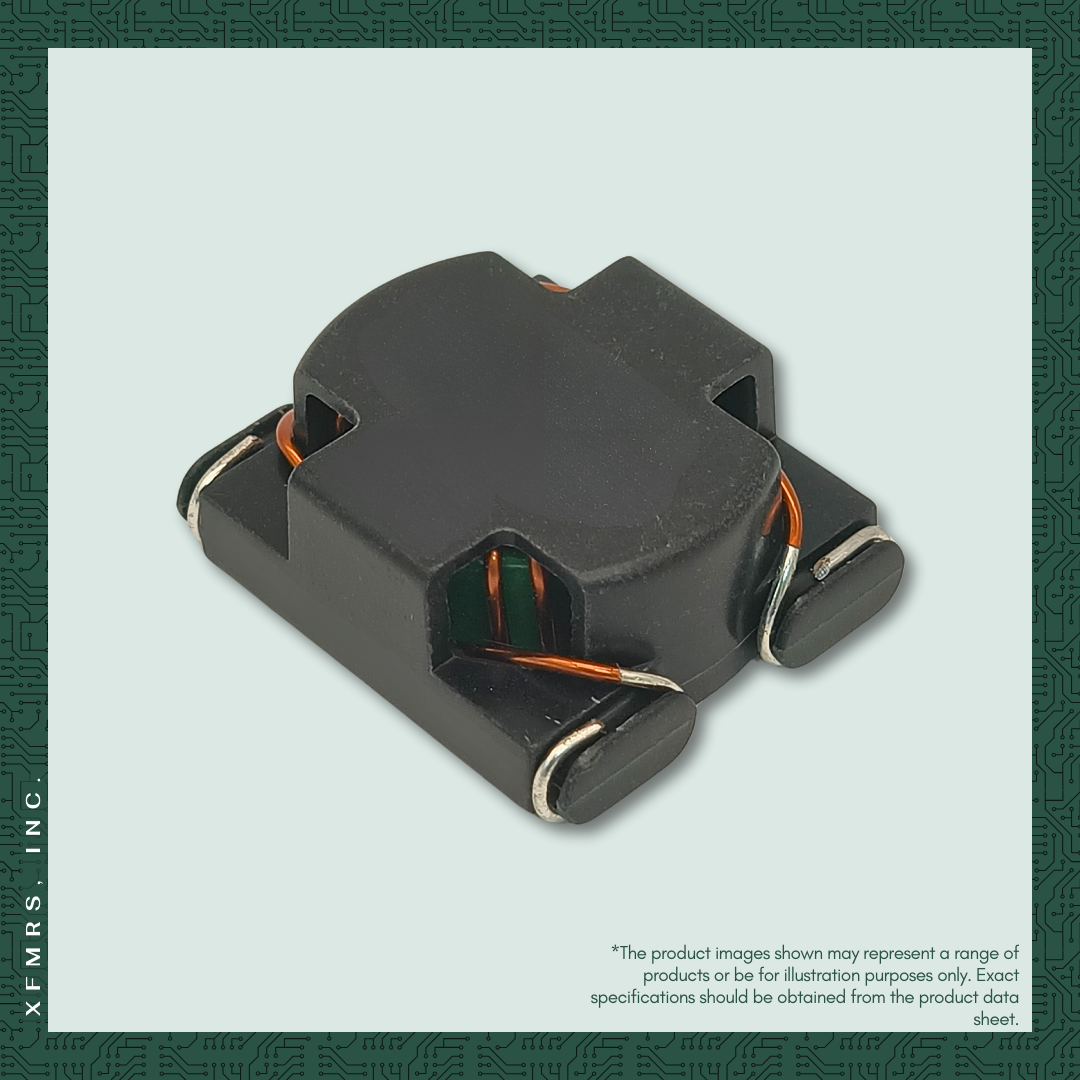

XF0264-CMC15 The XFMRS XF0264-CMC15 is a toroidal common mode choke designed for filtering applications. It features a primary inductance of 2600 µH and a current rating of 7A.
Mfr Part #:

XF0264-CMC15

Available from 2 distributors
Mfr Name: Xfmrs
Xfmrs
The XFMRS XF0264-CMC15 is a toroidal common mode choke designed for filtering applications. It features a primary inductance of 2600 µH and a current rating of 7A.
✓ Total Stock: 1,200 pcs
$ Price Range: $0.99

XF0264-CMC15 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XF0264-CMC15 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Style
Operating Temperature
Width
View Similar Products (0)

XF0264-CMC15 Description

Short technical summary and product information.

The XFMRS XF0264-CMC15 is a toroidal common mode choke (CMC) designed for effective noise suppression in electronic circuits. This component offers a primary inductance of 2600 µH and can handle a continuous current of up to 7A (Irms).



With a maximum DC resistance of 0.025 Ω, the XF0264-CMC15 minimizes power loss. Its physical dimensions are 30.99 mm in length, 25.4 mm in width, and 12.7 mm in height. The component is designed for surface mount device (SMD) applications, facilitating automated assembly processes.



The operating temperature range for this common mode choke is from -40°C to 85°C, making it suitable for a variety of environmental conditions. Its toroidal construction is known for its efficiency and low radiated magnetic field.



This common mode choke is part of XFMRS's line of transformers, inductors, and custom magnetics, providing reliable filtering solutions for various electronic systems.

XF0264-CMC15 Quick Information

Product Type: Common Mode Choke
Series: XF0264
Canonical Name: XFMRS XF0264-CMC15 Toroidal Common Mode Choke
Subcategory: Toroidal CMC

XF0264-CMC15 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XF0264-CMC15 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

XF0264-CMC15 Features

  • Toroidal common mode choke design.
  • High primary inductance of 2600 µH.
  • Rated for 7A continuous current.
  • Low DC resistance of 0.025 Ω.
  • Surface mount device (SMD) package.

XF0264-CMC15 Applications

  • Effective EMI/RFI noise suppression.
  • Suitable for power line filtering.
  • Used in switching power supplies.
  • Ideal for data communication lines.
  • Applicable in industrial controls.

XF0264-CMC15 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the primary inductance of XF0264-CMC15?

2600 µH.

What is the current rating of XF0264-CMC15?

7 A.

What is the DC resistance (DCR) of XF0264-CMC15?

0.025 Ω maximum.

What is the operating temperature range?

-40 to 85°C.

What are the dimensions and mounting style?

30.99 mm length, 25.4 mm width, 12.7 mm height, SMD mounting.
