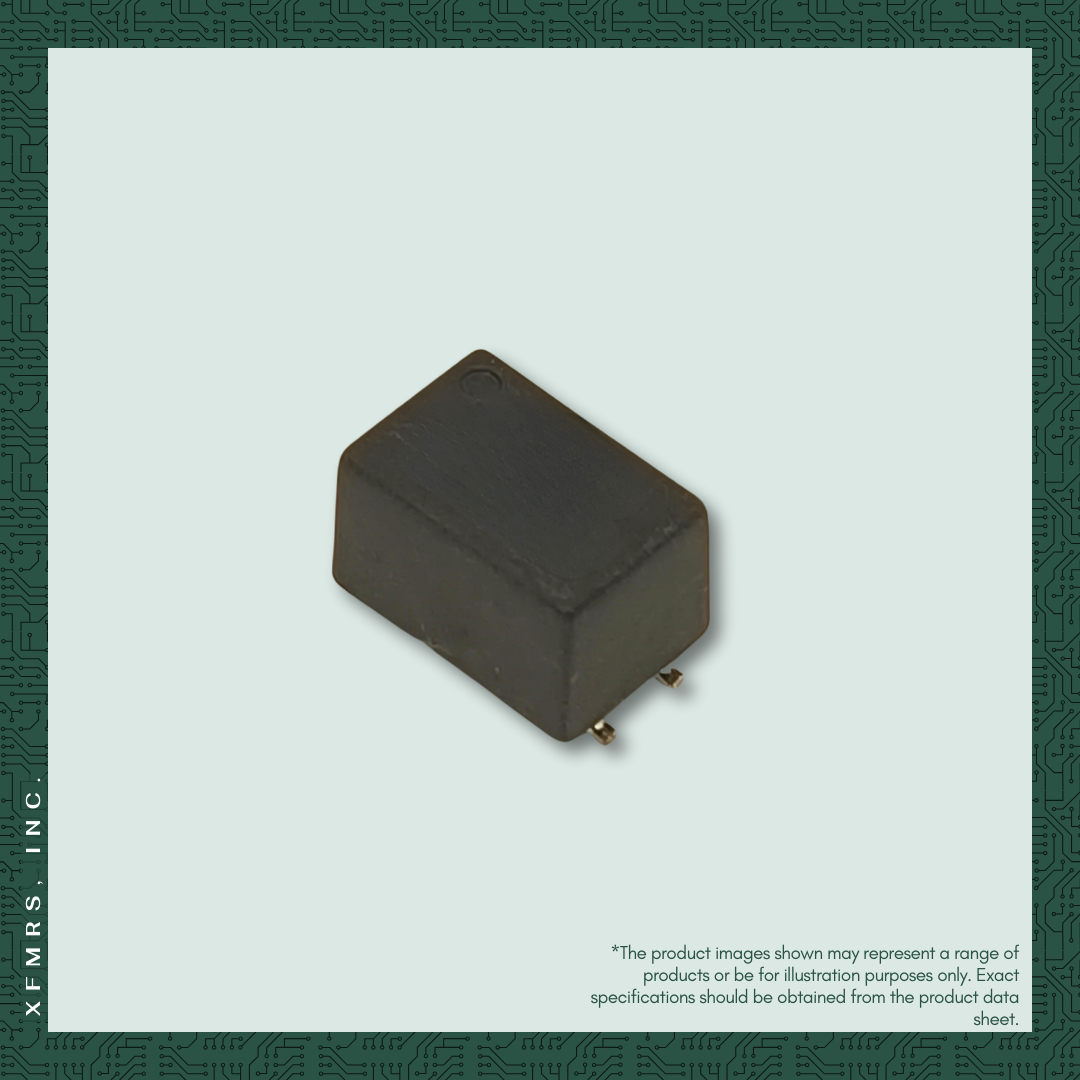

XF0183-00SM The XFMRS XF0183-00SM is a Common Mode Choke with a primary inductance of 18000uH and a maximum DCR of 2.5 Ohms. It features an SMD mounting style and is AECQ200 qualified.
Mfr Part #:

XF0183-00SM

Available from 2 distributors
Mfr Name: Xfmrs
Xfmrs
The XFMRS XF0183-00SM is a Common Mode Choke with a primary inductance of 18000uH and a maximum DCR of 2.5 Ohms. It features an SMD mounting style and is AECQ200 qualified.
✓ Total Stock: 2 pcs
$ Price Range: $3.00

XF0183-00SM Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XF0183-00SM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Style
Orientation
Turns Ratio
Width
View Similar Products (0)

XF0183-00SM Description

Short technical summary and product information.

The XFMRS XF0183-00SM is a Common Mode Choke belonging to the Other CMC sub-category within Specialty Transformers. It offers a nominal primary inductance of 18000 microhenries (uH) and a maximum DC resistance (DCR) of 2.5 Ohms. The turns ratio is 1.000:1.000.



This component has mechanical dimensions of 5.84mm in length, 9.4mm in width, and 6.1mm in height. It is designed for Surface Mount Device (SMD) mounting. The XF0183-00SM is also AECQ200 qualified, indicating its suitability for automotive applications.



Environmental compliance includes RoHS3 compliance, an MSL rating of 1 (Unlimited), and REACH unaffected status. These specifications make it suitable for various electronic designs requiring noise suppression and filtering.

XF0183-00SM Quick Information

Product Type: Common Mode Choke
Canonical Name: XFMRS XF0183-00SM Common Mode Choke
Subcategory: Other CMC

XF0183-00SM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XF0183-00SM Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

XF0183-00SM Features

  • 18000uH nominal primary inductance.
  • Maximum DC resistance of 2.5 Ohms.
  • Surface Mount Device (SMD) mounting style.
  • AECQ200 qualified for automotive use.
  • Compact dimensions: 5.84mm L x 9.4mm W x 6.1mm H.

XF0183-00SM Applications

  • Ideal for noise suppression circuits.
  • Suitable for EMI filtering applications.
  • Used in automotive electronic systems.
  • Effective in signal line filtering.

XF0183-00SM FAQs

6 frequently asked questions generated from this part’s specifications.
What is the mounting style for the XF0183-00SM?

Surface Mount Device (SMD).

What is the primary inductance value?

18,000 uH nominal.

What is the maximum DC resistance?

2.5 ohms.

What is the turns ratio?

1.000:1.000.

Is this component automotive qualified?

Yes, it holds AEC-Q200 qualification.

What are the physical dimensions?

9.4 mm width, 5.84 mm length, and 6.1 mm height.
