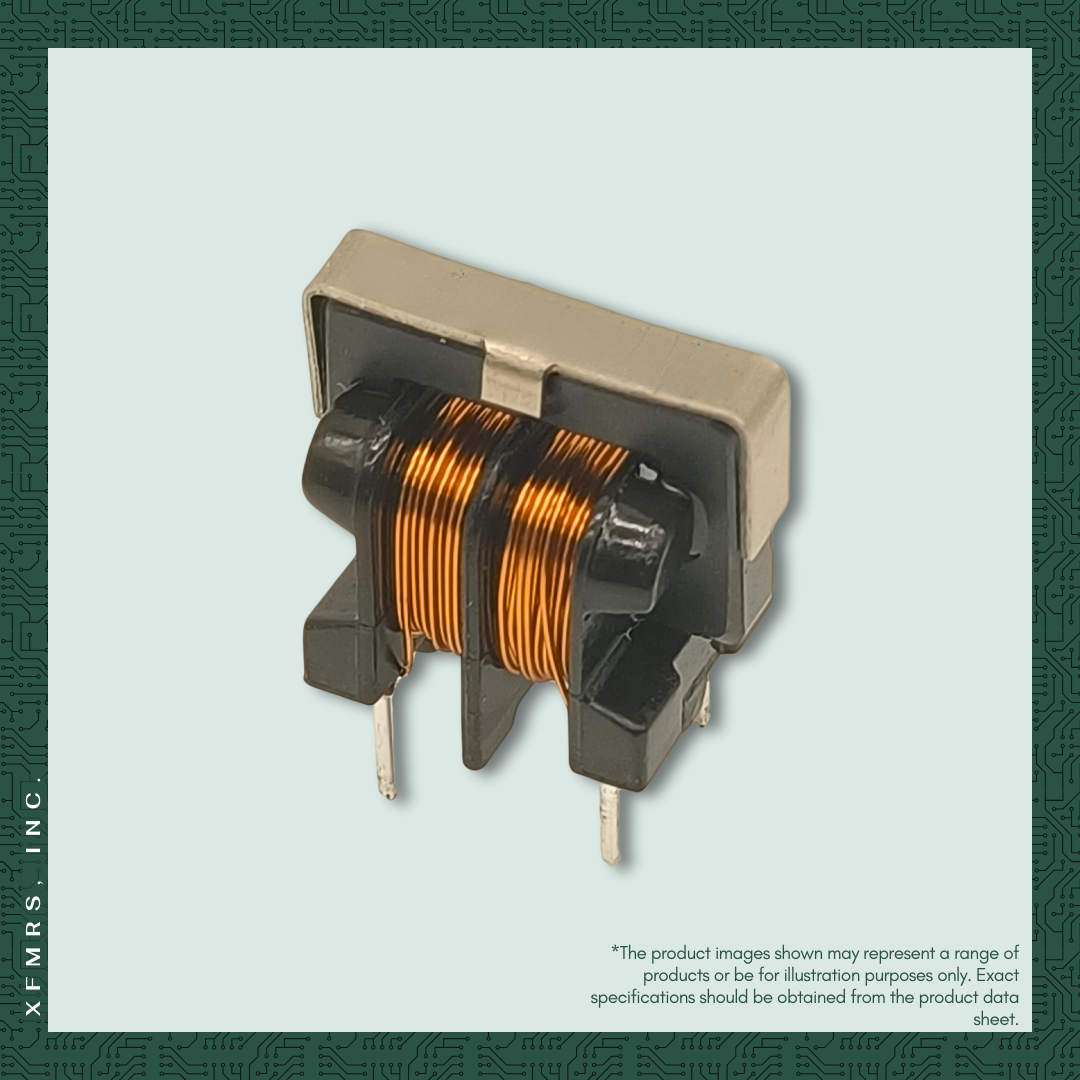

XF0053V-00U2 The XFMRS XF0053V-00U2 is a bobbin-wound common mode choke with a primary inductance of 5000 uH. It is designed for through-hole mounting.
Mfr Part #:

XF0053V-00U2

Available from 1 distributors
Mfr Name: Unknown
Unknown
The XFMRS XF0053V-00U2 is a bobbin-wound common mode choke with a primary inductance of 5000 uH. It is designed for through-hole mounting.
✓ Total Stock: 900 pcs
$ Price Range: $1.32

XF0053V-00U2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
900 pcs
On Request
900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XF0053V-00U2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
DC Resistance
Height
Length
Mounting Style
Operating Temperature
SVHC Present
Width
View Similar Products (0)

XF0053V-00U2 Description

Short technical summary and product information.

The XFMRS XF0053V-00U2 is a bobbin-wound common mode choke. It offers a primary inductance of 5000 uH and a current rating of 0.5A.



This component features a maximum DC resistance of 1 Ohm and an isolation voltage of 3750 Vac. The operating temperature range is from -55°C to 105°C.



With dimensions of 11mm in length, 17mm in width, and 17mm in height, the XF0053V-00U2 is suitable for through-hole (TH) mounting.



Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status.

XF0053V-00U2 Quick Information

Product Type: Common Mode Choke
Canonical Name: XFMRS XF0053V-00U2 Bobbin-Wound Common Mode Choke
Subcategory: Bobbin-Wound CMC

XF0053V-00U2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XF0053V-00U2 Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

XF0053V-00U2 Features

  • Bobbin-wound common mode choke.
  • 5000 uH primary inductance.
  • 0.5A current rating.
  • 3750Vac isolation voltage.
  • Through-hole mounting style.

XF0053V-00U2 Applications

  • Isolated DC-DC converter circuits.
  • Signal isolation in power supplies.
  • Gate drive transformer applications.
  • Industrial control and instrumentation.

XF0053V-00U2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the primary inductance of the XF0053V-00U2?

The primary inductance is 5000 uH.

What is the current rating of the XF0053V-00U2?

The current rating is 0.5 A.

What is the isolation voltage of the XF0053V-00U2?

The isolation voltage is 3750 Vac.

What is the operating temperature range of the XF0053V-00U2?

The operating temperature range is -55°C to 105°C.

What is the mounting style of the XF0053V-00U2?

The mounting style is through-hole (TH).
