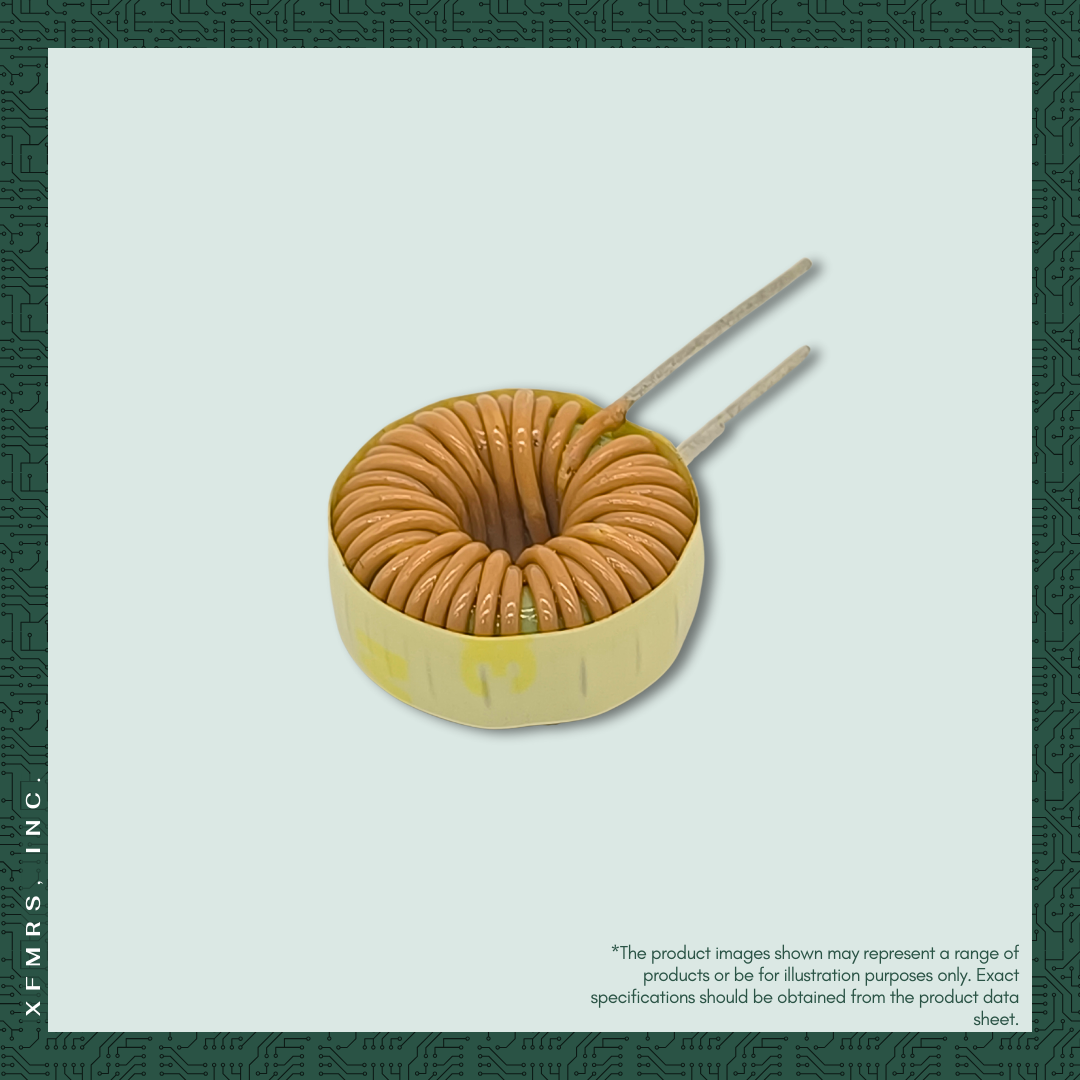

XF0025HV-VO The XFMRS XF0025HV-VO is a toroidal inductor featuring 20.6 uH of primary inductance and a maximum DCR of 0.045 Ohms. It operates within a temperature range of -40 to 85C.
Mfr Part #:

XF0025HV-VO

Available from 1 distributors
Mfr Name: Xfmrs
Xfmrs
The XFMRS XF0025HV-VO is a toroidal inductor featuring 20.6 uH of primary inductance and a maximum DCR of 0.045 Ohms. It operates within a temperature range of -40 to 85C.
✓ Total Stock: 11,766 pcs
$ Price Range: $0.18

XF0025HV-VO Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
11,766 pcs
On Request
11766 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XF0025HV-VO Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Dimensions
Inductance
Lead Style
Mounting Style
Operating Temperature
View Similar Products (0)

XF0025HV-VO Description

Short technical summary and product information.

This XFMRS XF0025HV-VO is a toroidal inductor designed for various electronic applications. It offers a primary inductance of 20.6 microhenries with a maximum DC resistance (DCR) of 0.045 Ohms.



The inductor is built for a wide operating temperature range, from -40 to 85 degrees Celsius, ensuring reliability in diverse environmental conditions. Its physical dimensions are 15mm in length, 6.83mm in width, and 15mm in height.



The mounting style for this component is Through-Hole (TH), making it suitable for integration into circuit boards via traditional soldering methods. The AEC-Q200 qualification indicates its suitability for automotive and harsh environment applications.

XF0025HV-VO Quick Information

Product Type: Toroidal Inductor
Canonical Name: XFMRS XF0025HV-VO Toroidal Inductor
Subcategory: Toroidal Inductor

XF0025HV-VO Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XF0025HV-VO Estimated Pricing

Qty Low High
1+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

XF0025HV-VO Features

  • Toroidal inductor with 20.6 uH inductance.
  • Low DCR of 0.045 Ohms.
  • Wide operating temperature range: -40 to 85C.
  • Through-hole (TH) mounting style.
  • AEC-Q200 qualified for reliability.

XF0025HV-VO Applications

  • Suitable for automotive applications.
  • Used in harsh environment circuits.
  • Ideal for power supply filtering.
  • Component for signal conditioning.

XF0025HV-VO FAQs

5 frequently asked questions generated from this part’s specifications.
What is the primary inductance of the XF0025HV-VO?

The primary inductance is 20.6 uH.

What is the maximum DC resistance (DCR) for this inductor?

The maximum DC resistance is 0.045 Ohms.

What is the operating temperature range for the XF0025HV-VO?

The operating temperature range is -40 to 85 degrees Celsius.

How is the XF0025HV-VO mounted?

It is mounted using the Through-Hole (TH) method.

Is the XF0025HV-VO AEC-Q200 qualified?

Yes, the XF0025HV-VO is AEC-Q200 qualified.
