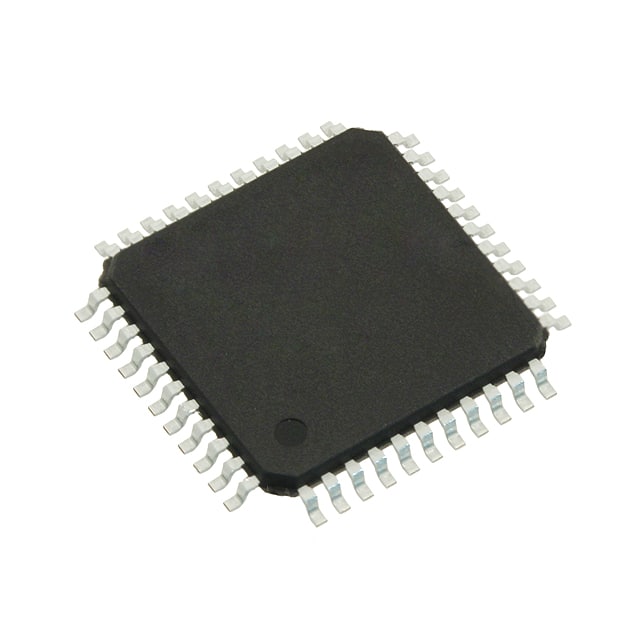

XCR3064XL-10VQG44C The Xilinx XCR3064XL-10VQG44C is a CoolRunner XPLA3 series CPLD. It features 64 macrocells and a maximum propagation delay of 9.1 ns.
Mfr Part #:

XCR3064XL-10VQG44C

Available from 4 distributors
Mfr Name: Xilinx
Xilinx
The Xilinx XCR3064XL-10VQG44C is a CoolRunner XPLA3 series CPLD. It features 64 macrocells and a maximum propagation delay of 9.1 ns.
✓ Total Stock: 5,071 pcs
$ Price Range: $0.50

XCR3064XL-10VQG44C Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,001 pcs
On Request
2001 pcs On Request 1 On Request On Request 24+ On Request On Request
Rayichip ✓
Non-Authorised Inventory information
1,924 pcs
On Request
1924 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,130 pcs
On Request
1130 pcs On Request 1 On Request On Request 17+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XCR3064XL-10VQG44C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Delay Time
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Gates
Number of I/O
Operating Temperature
Programmable Type
SVHC Present
Supplier Device Package
Voltage
View Similar Products (0)

XCR3064XL-10VQG44C Description

Short technical summary and product information.

The Xilinx XCR3064XL-10VQG44C is an integrated circuit belonging to the Complex Programmable Logic Device (CPLD) category. Part of the CoolRunner XPLA3 series, this device offers 64 macrocells and 1500 gates, with a maximum propagation delay of 9.1 ns.



It operates with an internal supply voltage ranging from 3V to 3.6V and supports up to 36 I/O pins. The CPLD is designed for in-system programmability, with a minimum of 1K program/erase cycles.



This component is available in a surface mount package, specifically a 44-TQFP, with the supplier device package being 44-VQFP. The operating temperature range is from 0°C to 70°C (TA).



Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 3 (168 Hours). The REACH status is listed as REACH Unaffected.

XCR3064XL-10VQG44C Quick Information

Product Type: CPLD
Series: CoolRunner XPLA3
Canonical Name: Xilinx XCR3064XL-10VQG44C CPLD
Subcategory: Complex Programmable Logic Device

XCR3064XL-10VQG44C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XCR3064XL-10VQG44C Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

XCR3064XL-10VQG44C Features

  • 64 macrocells and 1500 gates.
  • Maximum propagation delay of 9.1 ns.
  • Operates from 3V to 3.6V supply.
  • 36 input/output pins available.
  • In-system programmable functionality.

XCR3064XL-10VQG44C Applications

  • Ideal for digital logic implementation.
  • Suitable for embedded system designs.
  • Used in control and interface circuits.
  • Programmable logic solutions.

XCR3064XL-10VQG44C FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the XCR3064XL-10VQG44C?

3V to 3.6V.

What is the package type of this CPLD?

44-TQFP (VQFP 10x10).

What is the operating temperature range?

0°C to 70°C (ambient).

What is the maximum propagation delay?

9.1 ns.

How many macrocells does this CPLD have?

64 macrocells.

Is the device in-system programmable?

Yes, it is in-system programmable with minimum 1K program/erase cycles.

How many I/O pins does it have?

36 I/O pins.
