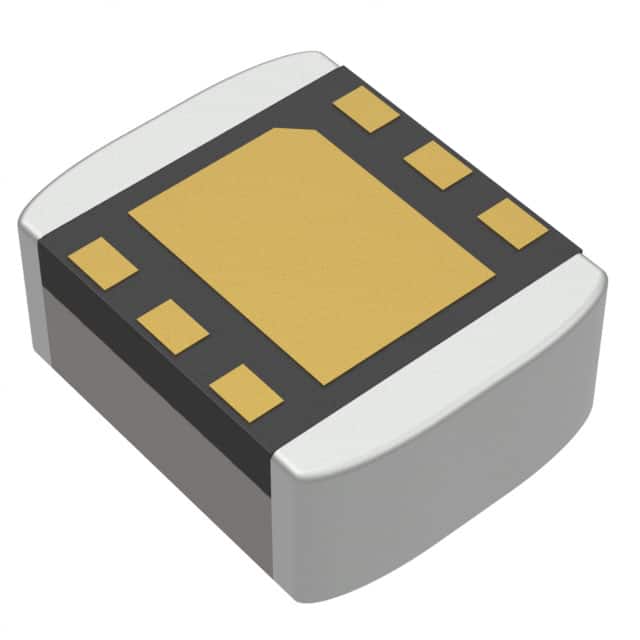

XCL103D503CR-G Non-isolated point-of-load DC-DC converter from Torex Semiconductor delivering 0.9V at 500mA with 86% efficiency in a compact 6-TDFN package.
Mfr Part #:

XCL103D503CR-G

Available from 1 distributors
Mfr Name: Torex Semiconductor
Torex Semiconductor
Non-isolated point-of-load DC-DC converter from Torex Semiconductor delivering 0.9V at 500mA with 86% efficiency in a compact 6-TDFN package.
✓ Total Stock: 4,000 pcs
$ Price Range: $1.26 - $2.50

XCL103D503CR-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XCL103D503CR-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Supplier Device Package
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

XCL103D503CR-G Description

Short technical summary and product information.

The XCL103D503CR-G is a non-isolated point-of-load (PoL) DC-DC converter module from Torex Semiconductor. It provides a fixed output voltage of 0.9V with a maximum output current of 500mA, delivering up to 2.5W of power. The module achieves an efficiency of 86%, making it suitable for power-sensitive commercial ITE applications.



Designed for surface-mount assembly, the device is housed in a 6-TDFN exposed pad package measuring just 2.5mm x 2.0mm x 1.0mm. It includes overcurrent protection (OCP) and short-circuit protection (SCP) for reliable operation. The operating temperature range spans -40°C to 85°C, allowing use in a variety of environments.



This converter is ideal for space-constrained designs requiring a regulated low-voltage rail from a higher input voltage. Its small footprint and integrated protection features simplify board layout and enhance system robustness.

XCL103D503CR-G Quick Information

Product Type: DC-DC Converter
Series: XCL103
Canonical Name: Torex Semiconductor XCL103D503CR-G Non-Isolated PoL DC-DC Converter
Subcategory: Point-of-Load Converter

XCL103D503CR-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XCL103D503CR-G Estimated Pricing

Qty Low High
1+ $2.50 $2.50
10+ $1.86 $1.86
25+ $1.70 $1.70
100+ $1.53 $1.53
250+ $1.44 $1.44
500+ $1.40 $1.40
1,000+ $1.37 $1.37
3,000+ $1.32 $1.32
6,000+ $1.26 $1.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

XCL103D503CR-G Features

  • Non-isolated point-of-load DC-DC converter.
  • Fixed 0.9V output at 500mA maximum current.
  • 86% typical efficiency for power-sensitive designs.
  • Integrated overcurrent and short-circuit protection.
  • Compact 6-TDFN exposed pad surface-mount package.

XCL103D503CR-G Applications

  • Powering low-voltage digital ICs and FPGAs.
  • Used in commercial ITE and embedded systems.
  • Ideal for space-constrained board-level designs.
  • Suitable for distributed power architectures.

XCL103D503CR-G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the XCL103D503CR-G?

The output voltage is fixed at 0.9V.

What is the maximum output current?

The maximum output current is 500mA.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package does this converter come in?

It comes in a 6-TDFN exposed pad surface-mount package (supplier device package CL-2025-02).

Is the XCL103D503CR-G RoHS compliant?

The part is marked as RoHS3 compliant, but this status is unverified.

What protection features does it include?

It includes overcurrent protection (OCP) and short-circuit protection (SCP).

What is the efficiency of this converter?

The typical efficiency is 86%.
