Mfr Part #:

XCKU060-FFVA1156-2-I

Mfr Name: Xilinx

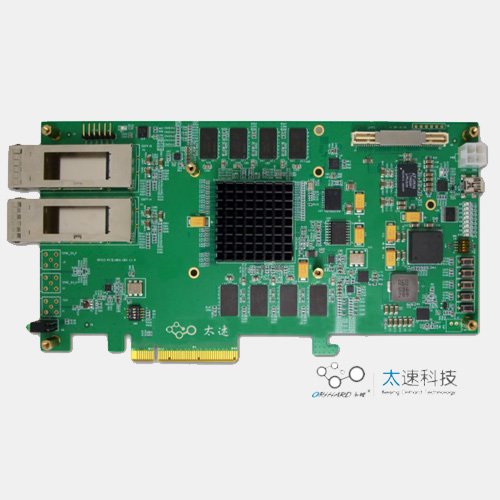

This PCIe card features the Xilinx Kintex UltraScale XCKU060 FPGA, offering dual 40Gbps QSFP+ interfaces and high-speed signal processing capabilities.

✓ Total Stock: 73 pcs

$ Price Range: $22.15

XCKU060-FFVA1156-2-I Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	73 pcs On Request	73 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

XCKU060-FFVA1156-2-I Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Xilinx
Industrial Grade	Yes
Lead Style	Ball
Mounting Type	Through Hole
Power Consumption	30W
SVHC Present	Not Present

View Similar Products (0)

XCKU060-FFVA1156-2-I Description

Short technical summary and product information.

The 383-Dual-channel QSFP+ fiber PCIe card is built around the Xilinx UltraScale Kintex series FPGA, specifically the XCKU060-FFVA1156-2-I. It supports PCIe Gen3 x8 mode for high-speed signal processing.

Key technical specifications include two 40Gbps QSFP+ interfaces for high-speed data transmission. The board is equipped with two groups of 64-bit DDR4 memory, each with a capacity of 8GB, capable of running stably at 2400MT/s. It also features 512Mb Qspi Nor Flash for system configuration and a 1Gb BPI x16 NorFlash for program loading.

Additional interfaces include 16 pairs of LVDS and 32 LVCMOS33 signals, along with a UART-USB interface. The card operates on a DC +12V ±10% power supply, consuming approximately 30W. Designed for industrial applications, it functions within an operating temperature range of -20°C to +65°C.

The board supports automatic power-on sequencing and BPI mode for fast program loading. It is compatible with Vivado 2017.4 software and programmed using Verilog. Interface test programs for DDR, optical fiber, and PCIe are available, along with application programs for PCIe V3.0 XDMA testing and drivers for Windows 7 and Linux.

XCKU060-FFVA1156-2-I Quick Information

Product Type: FPGA

Series: Kintex UltraScale

Canonical Name: Xilinx Kintex UltraScale FPGA XCKU060-FFVA1156-2-I

Subcategory: Field Programmable Gate Array

XCKU060-FFVA1156-2-I Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

XCKU060-FFVA1156-2-I Estimated Pricing

Qty	Low	High
1+	$22.15	$22.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

XCKU060-FFVA1156-2-I Features

Dual 40Gbps QSFP+ high-speed interfaces.
16GB DDR4 memory for data buffering.
PCIe Gen3 x8 mode support.
Industrial temperature range (-20°C to +65°C).
Based on Xilinx Kintex UltraScale FPGA.

XCKU060-FFVA1156-2-I Applications

High-speed signal processing.
Fiber optic acceleration calculations.
Network infrastructure.
Data acquisition systems.

XCKU060-FFVA1156-2-I FAQs

7 frequently asked questions generated from this part’s specifications.

What FPGA is used on this board?

The board is built around the Xilinx Kintex UltraScale FPGA, part number XCKU060-FFVA1156-2I.

What is the memory configuration?

Two groups of DDR4, each 64-bit and 8GByte capacity, running at 1200MHz/s.

What PCIe version does the board support?

PCIe 2.0 and 3.0.

What high-speed interfaces are available?

Two QSFP+ channels supporting 40Gbps each.

What is the power supply requirement?

+12VDC ±10% at 2.5A, with a typical power consumption of 30W.

What is the operating temperature range?

-20°C to +65°C (industrial grade).

What software is supported?

Vivado 2017.4 with Verilog programming language.
