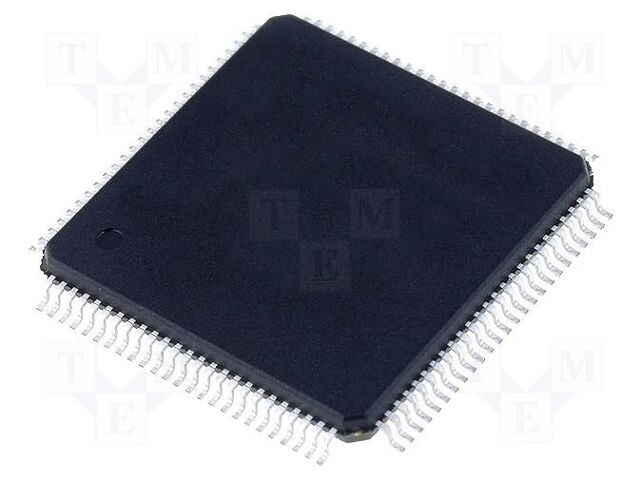

XC9572-15TQG100 The Xilinx XC9572-15TQG100 is a CPLD with 72 macrocells and 72 I/O pins. It operates at 5VDC with a propagation delay of 15ns.
Mfr Part #:

XC9572-15TQG100

Available from 1 distributors
Mfr Name: Xilinx
Xilinx
The Xilinx XC9572-15TQG100 is a CPLD with 72 macrocells and 72 I/O pins. It operates at 5VDC with a propagation delay of 15ns.
✓ Total Stock: 24,107 pcs
$ Price Range: $0.50

XC9572-15TQG100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
24,107 pcs
On Request
24107 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC9572-15TQG100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time
Mounting Type
Supply Voltage
View Similar Products (0)

XC9572-15TQG100 Description

Short technical summary and product information.

The Xilinx XC9572-15TQG100 is a Complex Programmable Logic Device (CPLD) designed for various digital logic applications. This component features 72 macrocells and supports up to 72 input/output (I/O) pins, providing flexibility for circuit design.



With a propagation delay of 15ns, the XC9572-15TQG100 is suitable for applications requiring moderate speed performance. It operates on a supply voltage of 5VDC, making it compatible with a wide range of power systems. The device is housed in a TQFP100 surface-mount (SMD) package, requiring appropriate soldering techniques for integration into printed circuit boards.



This CPLD is part of the XC9500 family, known for its high-performance, non-volatile CPLD solutions. Its architecture is designed to offer efficient logic implementation and reliable operation in embedded systems.

XC9572-15TQG100 Quick Information

Product Type: CPLD
Series: XC9500
Canonical Name: XC9572-15TQG100 CPLD
Subcategory: Complex Programmable Logic Devices

XC9572-15TQG100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XC9572-15TQG100 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC9572-15TQG100 Features

  • 72 macrocells for logic implementation.
  • Supports up to 72 input/output pins.
  • 15ns propagation delay for moderate speed.
  • Operates at 5VDC supply voltage.
  • TQFP100 SMD package for surface mounting.

XC9572-15TQG100 Applications

  • Digital logic implementation.
  • Embedded system control.
  • Interface logic design.
  • Programmable logic solutions.

XC9572-15TQG100 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the number of macrocells in the XC9572-15TQG100?

The XC9572-15TQG100 has 72 macrocells.

How many I/O pins does the XC9572-15TQG100 have?

The XC9572-15TQG100 has 72 I/O pins.

What is the propagation delay of the XC9572-15TQG100?

The propagation delay of the XC9572-15TQG100 is 15ns.

What is the operating supply voltage for the XC9572-15TQG100?

The XC9572-15TQG100 operates at a supply voltage of 5VDC.

What type of package is the XC9572-15TQG100 in?

The XC9572-15TQG100 is in a TQFP100 SMD package.
