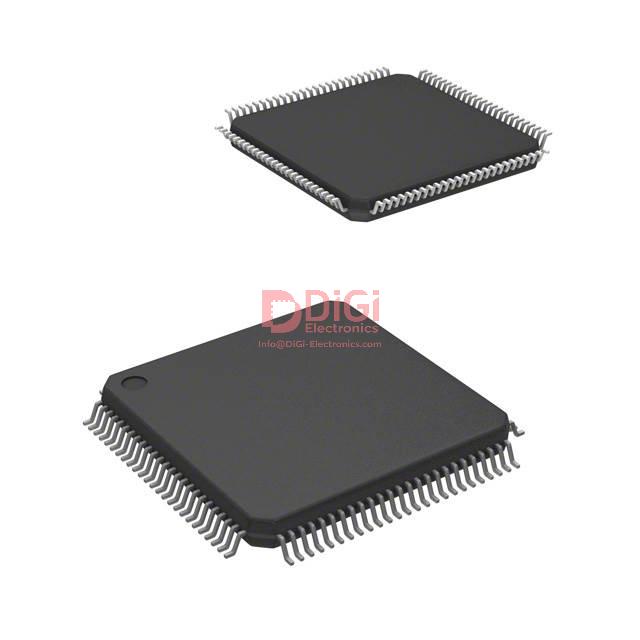

XC9572-10TQ100C The XC9572-10TQ100C is an obsolete Complex Programmable Logic Device (CPLD) from Xilinx. It features 72 macrocells and a 10ns maximum propagation delay.
Mfr Part #:

XC9572-10TQ100C

Available from 1 distributors
Mfr Name: Xilinx
Xilinx
The XC9572-10TQ100C is an obsolete Complex Programmable Logic Device (CPLD) from Xilinx. It features 72 macrocells and a 10ns maximum propagation delay.
✓ Total Stock: 8 pcs
$ Price Range: $0.50

XC9572-10TQ100C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC9572-10TQ100C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Lead Spacing
Lead Style
Mounting Type
Number of Gates
Number of I/O
Programmable Type
SVHC Present
Supplier Device Package
Voltage
View Similar Products (0)

XC9572-10TQ100C Description

Short technical summary and product information.

The Xilinx XC9572-10TQ100C is a Complex Programmable Logic Device (CPLD) belonging to the XC9500 series. This obsolete component is designed for embedded applications and offers 72 macrocells, 1600 gates, and 72 I/O pins.



Key electrical specifications include a maximum propagation delay of 10 ns and an internal supply voltage range of 4.75V to 5.25V. The device operates within a temperature range of 0°C to 70°C (TA).



Packaged in a 100-TQFP (14x14) format, the XC9572-10TQ100C is designed for surface mounting. It is an In-System Programmable device, rated for a minimum of 10,000 program/erase cycles.



This CPLD is categorized under Embedded and CPLDs (Complex Programmable Logic Devices). While RoHS, REACH, and MSL data are available, they are marked with low confidence and require verification.

XC9572-10TQ100C Quick Information

Product Type: CPLD
Series: XC9500
Canonical Name: XC9572-10TQ100C Complex Programmable Logic Device
Subcategory: Complex Programmable Logic Devices

XC9572-10TQ100C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XC9572-10TQ100C Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC9572-10TQ100C Features

  • 72 macrocells and 1600 gates.
  • 10ns maximum propagation delay.
  • 4.75V to 5.25V internal supply voltage.
  • Surface mount 100-TQFP package.
  • In-System Programmable device.

XC9572-10TQ100C Applications

  • Use in programmable logic control applications.
  • Implement custom digital logic functions.
  • Interface glue logic in embedded systems.
  • Suitable for prototyping and small-scale designs.

XC9572-10TQ100C FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of macrocells?

72 macrocells.

What is the maximum propagation delay?

10 ns maximum propagation delay.

What is the supply voltage range?

4.75V to 5.25V.

What is the operating temperature range?

0°C to 70°C.

What package is the XC9572-10TQ100C available in?

100-LQFP (100-TQFP 14x14) surface mount package.

Is the device in-system programmable?

Yes, it supports in-system programming with a minimum of 10,000 program/erase cycles.

How many I/O pins does it have?

72 I/O pins.
