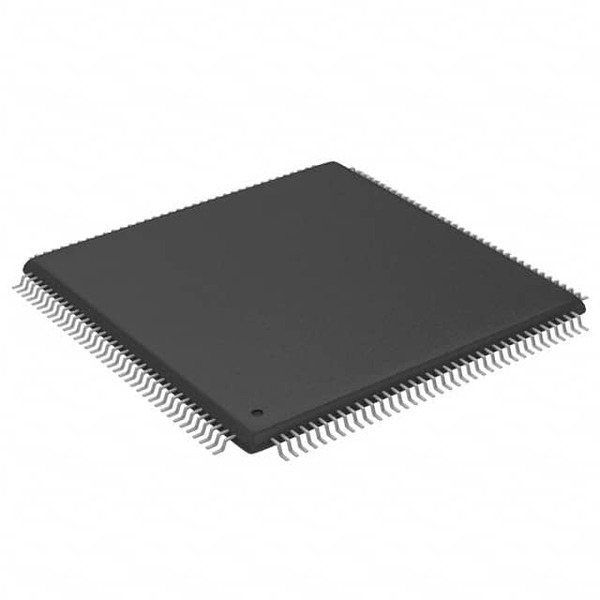

XC95144XL-10TQG144I The Xilinx XC95144XL-10TQG144I is a CPLD featuring 144 macrocells and a maximum propagation delay of 10 ns. It operates within a 3V to 3.6V internal supply voltage range.
Mfr Part #:

XC95144XL-10TQG144I

Available from 4 distributors
Mfr Name: Xilinx
Xilinx
The Xilinx XC95144XL-10TQG144I is a CPLD featuring 144 macrocells and a maximum propagation delay of 10 ns. It operates within a 3V to 3.6V internal supply voltage range.
✓ Total Stock: 8,131 pcs
$ Price Range: $0.50

XC95144XL-10TQG144I Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
4,305 pcs
On Request
4305 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,900 pcs
On Request
2900 pcs On Request 1 On Request On Request 24+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
900 pcs
On Request
900 pcs On Request 1 On Request On Request 21+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
26 pcs
On Request
26 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC95144XL-10TQG144I Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time
Mounting Type
Number of Gates
Number of I/O
Operating Temperature
Programmable Type
Storage Temperature
Tape & Reel
View Similar Products (0)

XC95144XL-10TQG144I Description

Short technical summary and product information.

The Xilinx XC95144XL-10TQG144I is a Complex Programmable Logic Device (CPLD) from the XC9500XL series. It offers 144 macrocells and 3200 gates, designed for in-system programmability with a minimum of 10,000 program/erase cycles.



This CPLD has a maximum propagation delay of 10 ns, making it suitable for high-speed digital logic applications. It operates with an internal voltage supply ranging from 3V to 3.6V and provides 117 input/output pins. The operating temperature range is -40°C to 85°C (TA).



The device is housed in a 144-TQFP surface-mount package. Its RoHS status is compliant, and it is REACH unaffected. The Moisture Sensitivity Level (MSL) is 3 (168 Hours).



This component is ideal for embedded systems requiring flexible logic implementation and control functions.

XC95144XL-10TQG144I Quick Information

Product Type: CPLD
Series: XC9500XL
Canonical Name: XC95144XL-10TQG144I CPLD
Subcategory: Complex Programmable Logic Device

XC95144XL-10TQG144I Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 Hours)
REACH Status: REACH Unaffected

XC95144XL-10TQG144I Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC95144XL-10TQG144I Features

  • 144 macrocells and 3200 gates.
  • Maximum propagation delay of 10 ns.
  • Internal voltage supply 3V to 3.6V.
  • 117 input/output pins available.
  • Operates from -40°C to 85°C.

XC95144XL-10TQG144I Applications

  • Suitable for digital logic applications.
  • Ideal for embedded system control.
  • Flexible logic implementation.
  • High-speed digital designs.

XC95144XL-10TQG144I FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum propagation delay for the XC95144XL-10TQG144I?

The maximum propagation delay (tpd(1) Max) for the XC95144XL-10TQG144I is 10 ns.

What is the operating voltage range for the XC95144XL-10TQG144I?

The internal voltage supply range for the XC95144XL-10TQG144I is 3V to 3.6V.

What is the operating temperature range for this CPLD?

The XC95144XL-10TQG144I operates within a temperature range of -40°C to 85°C (TA).

What package type is the XC95144XL-10TQG144I supplied in?

The XC95144XL-10TQG144I is supplied in a 144-TQFP package.

What is the RoHS status of the XC95144XL-10TQG144I?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the XC95144XL-10TQG144I?

The Moisture Sensitivity Level (MSL) is 3 (168 Hours).

What programming methods are supported for the XC95144XL-10TQG144I?

The XC95144XL-10TQG144I can be programmed using JTAG or a standard parallel configuration method, supporting both in-system programming (ISP) and off-system programming.
