| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,758 pcs
|
4758 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
825 pcs
|
825 pcs | On Request | 1 | On Request | On Request | 0925+ | On Request | On Request | |
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
513 pcs
|
513 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Gates | |
| Number of I/O | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package |

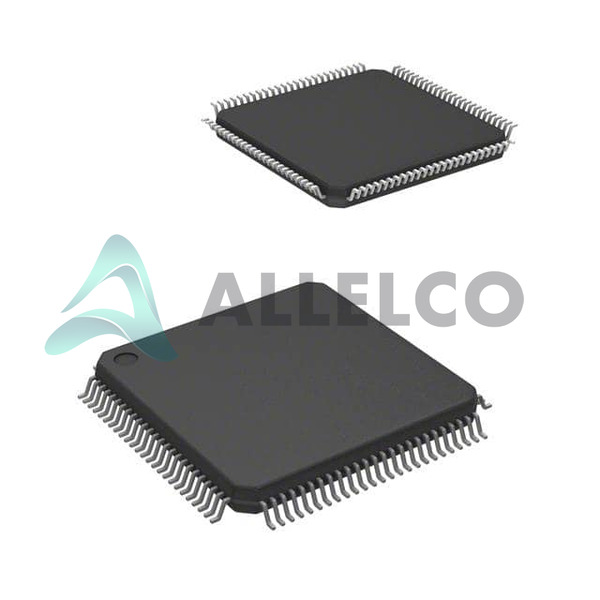

The XC95144XL-10TQG100I from Xilinx is a high-performance Complex Programmable Logic Device (CPLD) designed for embedded applications. This device offers 144 macrocells and 3200 gates, providing significant logic capacity for complex designs.
Key electrical characteristics include a maximum propagation delay of 10 ns and an internal operating voltage range of 3V to 3.6V. It supports up to 81 input/output pins, making it versatile for various interfacing needs. The CPLD is in-system programmable, with a minimum of 10,000 program/erase cycles, ensuring flexibility during development and deployment.
Packaged in a 100-TQFP (14x14) format, the XC95144XL-10TQG100I is designed for surface mounting. It operates within a temperature range of -40°C to 85°C, suitable for a wide array of environmental conditions. The device is specified with 8 logic elements/blocks, contributing to its efficient logic implementation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum propagation delay (tpd) is 10 ns.
The internal operating voltage is between 3V and 3.6V.
The device features 144 macrocells.
It is supplied in a 100-TQFP package.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
The MSL is 3 (168 Hours).
