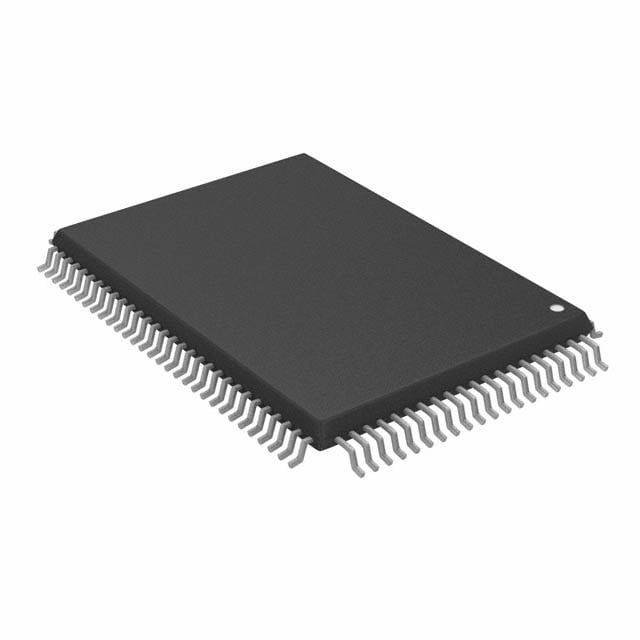

XC95144-15PQ100C The Xilinx XC95144-15PQ100C is a Complex Programmable Logic Device (CPLD) with 144 macrocells and a 15ns maximum propagation delay. It features a surface mount package and operates within a temperature range of 0°C to 70°C.
Mfr Part #:

XC95144-15PQ100C

Available from 1 distributors
Mfr Name: Xilinx
Xilinx
The Xilinx XC95144-15PQ100C is a Complex Programmable Logic Device (CPLD) with 144 macrocells and a 15ns maximum propagation delay. It features a surface mount package and operates within a temperature range of 0°C to 70°C.
✓ Total Stock: 28 pcs

XC95144-15PQ100C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
28 pcs
On Request
28 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC95144-15PQ100C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mounting Type
Number of Gates
Number of I/O
Operating Temperature
Programmable Type
SVHC Present
Supplier Device Package
View Similar Products (0)

XC95144-15PQ100C Description

Short technical summary and product information.

The XC95144-15PQ100C from Xilinx is a high-performance Complex Programmable Logic Device (CPLD) designed for embedded applications. This device offers 144 macrocells and 3200 gates, providing ample logic capacity for various digital designs. It features a maximum propagation delay of 15 ns, ensuring fast signal processing.



The CPLD operates within a voltage supply range of 4.75V to 5.25V and supports up to 81 I/O pins. The operating temperature range is from 0°C to 70°C, making it suitable for a wide array of environmental conditions. The device is designed for in-system programmability, with a minimum of 10,000 program/erase cycles.



Packaged in a 100-PQFP (20x14) format, the XC95144-15PQ100C is designed for surface mounting. Its robust construction and reliable performance make it a suitable choice for designers requiring flexible and efficient logic solutions in their embedded systems.

XC95144-15PQ100C Quick Information

Product Type: CPLD
Series: XC9500
Canonical Name: XC95144-15PQ100C CPLD
Subcategory: CPLD

XC95144-15PQ100C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3
REACH Status: REACH Unaffected

XC95144-15PQ100C Features

  • 144 macrocells for logic implementation.
  • 15ns maximum propagation delay.
  • Operates from 0°C to 70°C.
  • Surface mount 100-PQFP package.
  • In-system programmable device.

XC95144-15PQ100C Applications

  • Embedded system logic control.
  • Digital signal processing.
  • Interface bridging applications.
  • Custom logic implementation.

XC95144-15PQ100C FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the XC95144-15PQ100C?

4.75V to 5.25V.

What is the operating temperature range?

0°C to 70°C.

What package does the XC95144-15PQ100C come in?

100-PQFP (Plastic Quad Flat Pack) with dimensions 20x14 mm.

How many macrocells does it have?

144 macrocells.

What is the propagation delay?

15 ns maximum.

How many I/O pins does it provide?

81 I/O pins.

Is the device programmable in-system?

Yes, it is in-system programmable with a minimum of 10,000 program/erase cycles.
