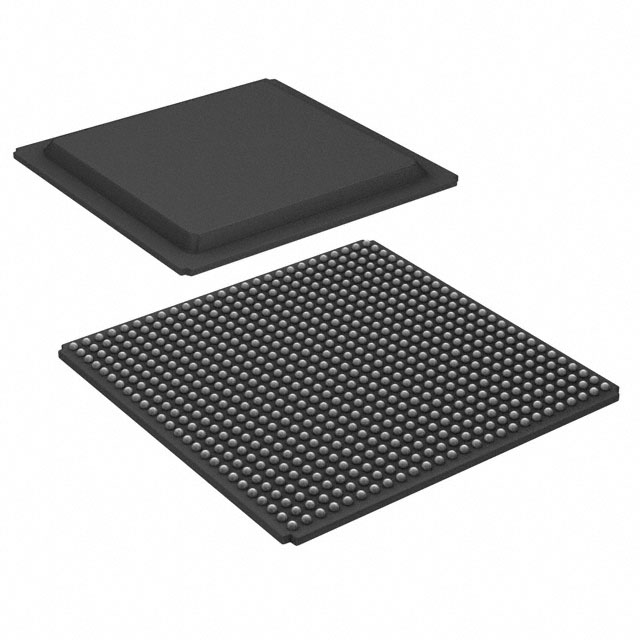

This Advanced Micro Devices XC7S75-2FGGA676C is a Field Programmable Gate Array (FPGA) designed for embedded applications. It features 76,800 logic elements and 6,000 LABs, with a total of 4,331,520 RAM bits. The device supports 400 I/O pins and operates within a voltage range of 0.95V to 1.05V.
The FPGA has an operating temperature range of 0°C to 85°C (TJ). It is housed in a 676-BGA package and utilizes a surface mount mounting type. The supplier device package is specified as 676-FPBGA (27x27).
This component is suitable for various digital logic and processing tasks where reconfigurability is required. Its specifications make it a candidate for applications needing custom hardware acceleration or flexible I/O configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.20 | $21.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The XC7S75-2FGGA676C has 76,800 logic elements.
The XC7S75-2FGGA676C has 400 I/O pins.
The operating voltage range is 0.95V to 1.05V.
The package type is 676-BGA, specifically a 676-FPBGA (27x27) supplier device package.
The operating temperature range is 0°C to 85°C (TJ).
