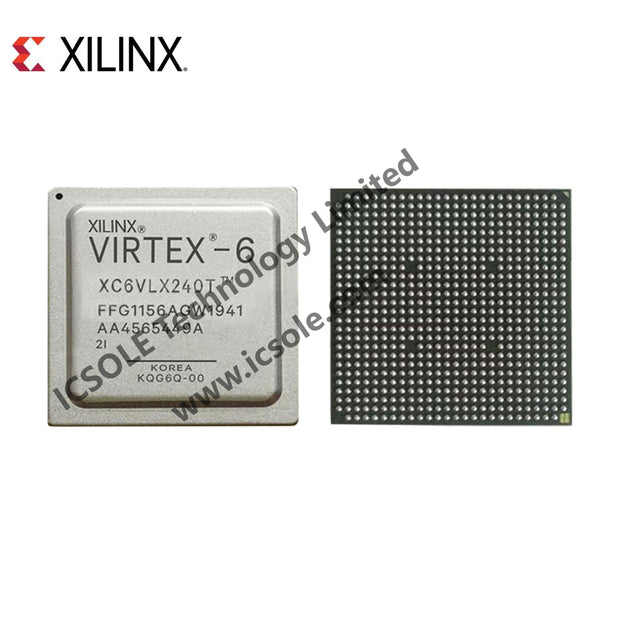

XC6VLX240T-2FFG1156I The Xilinx XC6VLX240T-2FFG1156I is a Virtex-6 LXT FPGA featuring 241152 logic cells and 600 I/O pins. It operates on a 0.95V to 1.05V supply and is designed for surface mounting.
Mfr Part #:

XC6VLX240T-2FFG1156I

Available from 3 distributors
Mfr Name: Xilinx
Xilinx
The Xilinx XC6VLX240T-2FFG1156I is a Virtex-6 LXT FPGA featuring 241152 logic cells and 600 I/O pins. It operates on a 0.95V to 1.05V supply and is designed for surface mounting.
✓ Total Stock: 2,720 pcs

XC6VLX240T-2FFG1156I Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,120 pcs
On Request
2120 pcs On Request 1 On Request On Request 24+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
360 pcs
On Request
360 pcs On Request 1 On Request On Request 22+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
240 pcs
On Request
240 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC6VLX240T-2FFG1156I Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Industrial Grade
Mounting Type
Number of I/O
Operating Temperature
Supplier Device Package
Technology
Voltage Supply
View Similar Products (0)

XC6VLX240T-2FFG1156I Description

Short technical summary and product information.

The Xilinx XC6VLX240T-2FFG1156I is a high-performance FPGA from the Virtex-6 LXT family. It offers a substantial 241152 logic cells and 15335424 RAM bits, making it suitable for complex digital designs.



This device supports 600 I/O pins and operates within a voltage supply range of 0.95V to 1.05V. The operating temperature range is specified from -40°C to 100°C (TJ), ensuring reliability in various environments. It is built on a 40nm process technology.



The XC6VLX240T-2FFG1156I is packaged in a 1156-BBGA, FCBGA format and is designed for surface mounting. Its architecture is based on the third-generation ASMBL (Advanced Silicon Modular Block) column-based design, providing a programmable alternative to custom ASIC technology for high-performance logic, DSP, and embedded systems designers.

XC6VLX240T-2FFG1156I Quick Information

Product Type: FPGA
Series: Virtex-6 LXT
Canonical Name: Xilinx Virtex-6 LXT FPGA XC6VLX240T-2FFG1156I
Subcategory: Field Programmable Gate Array

XC6VLX240T-2FFG1156I Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead free

XC6VLX240T-2FFG1156I Features

  • 241152 logic cells and 15335424 RAM bits.
  • 600 I/O pins for flexible connectivity.
  • 0.95V to 1.05V operating voltage supply.
  • Wide -40°C to 100°C operating temperature.
  • Surface mount 1156-BBGA, FCBGA package.

XC6VLX240T-2FFG1156I Applications

  • Ideal for high-performance computing and signal processing.
  • Suitable for industrial control and automation systems.
  • Used in telecommunications and networking equipment.
  • Applicable in aerospace and defense electronics.
  • Can be used in medical imaging and instrumentation.

XC6VLX240T-2FFG1156I FAQs

7 frequently asked questions generated from this part’s specifications.
How many logic elements does the XC6VLX240T-2FFG1156I have?

241,152 logic elements (cells).

What is the total block RAM size?

15,335,424 bits (15.3 Mb).

How many I/O pins are available?

600 I/O pins.

What is the operating voltage range?

0.95V to 1.05V.

What is the operating temperature range?

-40°C to 100°C (junction temperature).

What package does the XC6VLX240T-2FFG1156I come in?

1156-BBGA, FCBGA (35x35 mm).

What is the fabrication technology?

40nm process.
