XC6501B2520R-G The Torex Semiconductor XC6501B2520R-G is a linear voltage regulator IC with a fixed 2.5V output and 200mA output current capability. It is designed for surface mount applications.
Mfr Part #:

XC6501B2520R-G

Available from 1 distributors
Mfr Name: Torex Semiconductor
Torex Semiconductor
The Torex Semiconductor XC6501B2520R-G is a linear voltage regulator IC with a fixed 2.5V output and 200mA output current capability. It is designed for surface mount applications.
✓ Total Stock: 5,000 pcs
$ Price Range: $0.28

XC6501B2520R-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC6501B2520R-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Supplier Device Package
Tape & Reel
Voltage
Voltage Dropout (Max)
View Similar Products (0)

XC6501B2520R-G Description

Short technical summary and product information.

The Torex Semiconductor XC6501B2520R-G is a positive fixed output linear voltage regulator IC. It operates with a maximum input voltage of 6V and provides a stable 2.5V output. This device is capable of delivering up to 200mA of current, with a typical dropout voltage of 0.38V at 200mA. The quiescent current is a low 19 µA, making it suitable for power-sensitive applications. It features over-current protection and an enable control function.

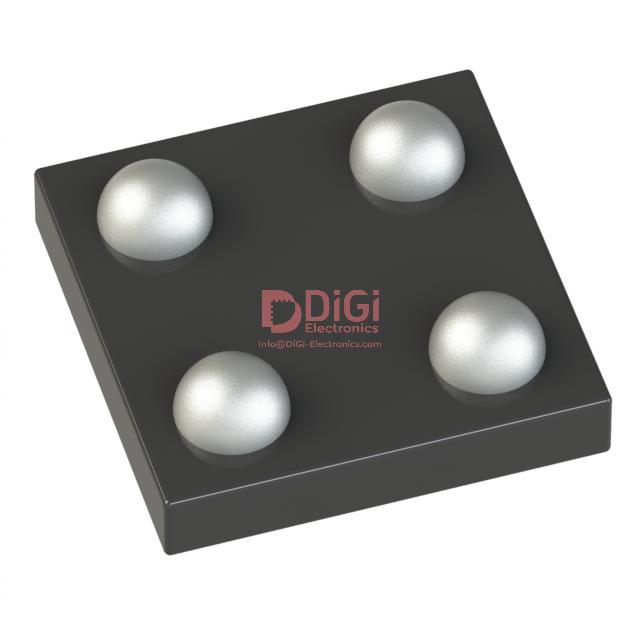

The XC6501B2520R-G comes in a compact WLP-4-01 package, designed for surface mounting. The operating temperature range is -40°C to 85°C (TA). This regulator is part of the Power Management (PMIC) category, specifically within Voltage Regulators - Linear, Low Drop Out (LDO) Regulators.



This component is suitable for various electronic designs requiring a reliable and efficient voltage regulation solution. Its small footprint and surface mount capability make it ideal for space-constrained applications.

XC6501B2520R-G Quick Information

Product Type: Linear Voltage Regulator IC
Canonical Name: Torex Semiconductor XC6501B2520R-G Linear Voltage Regulator IC
Subcategory: Linear, Low Drop Out (LDO)

XC6501B2520R-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

XC6501B2520R-G Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC6501B2520R-G Features

  • Fixed 2.5V output voltage.
  • 200mA maximum output current.
  • Low 19 µA quiescent current.
  • Compact WLP-4-01 package.
  • Surface mountable design.

XC6501B2520R-G Applications

  • Suitable for power management.
  • Ideal for low dropout applications.
  • Used in space-constrained designs.
  • Provides stable 2.5V output.

XC6501B2520R-G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the XC6501B2520R-G?

The fixed output voltage is 2.5V.

What is the maximum input voltage for this regulator?

The maximum input voltage is 6V.

What is the dropout voltage at full load?

The maximum dropout voltage is 0.38V at 200mA output current.

What is the quiescent current of the XC6501B2520R-G?

The typical quiescent current is 19µA.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package is the XC6501B2520R-G available in?

It is available in a WLP-4-01 surface-mount package.
