| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |
The XC6221A1827R-G from Torex Semiconductor is a linear voltage regulator designed for various electronic applications. It provides a stable, fixed output voltage of 1.8V and can supply a maximum output current of 200mA. The device accepts an input voltage up to 6V, making it suitable for a range of power supply designs.
Key electrical characteristics include a low dropout voltage of 0.21V at 100mA and a quiescent current of 50 µA. The regulator features an Enable control pin for power management and includes protection against over current and short circuit conditions. Its operating temperature range is from -40°C to 85°C.

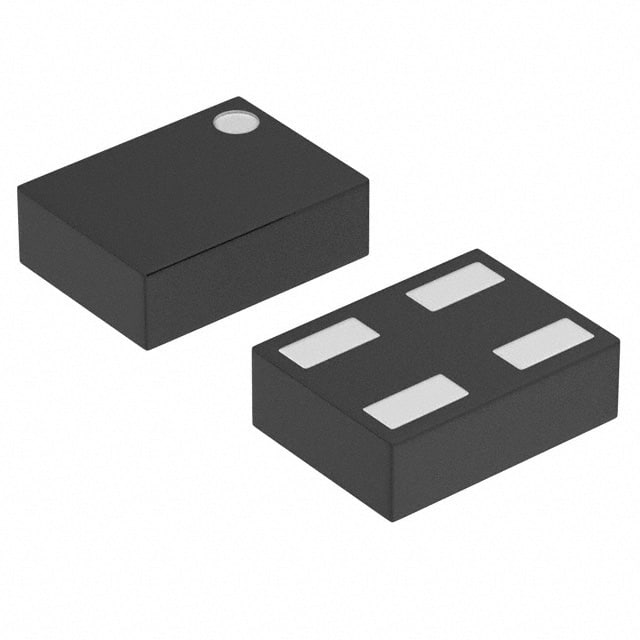

This component is available in a compact 4-USPN package, measuring 0.90x1.2mm, and is designed for surface mount applications. The package type is 4-XDFN, and it is supplied in Tape & Reel or Cut Tape formats, facilitating automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6V.
1.8V fixed.
0.21V maximum.
50µA nominal.
-40°C to 85°C.
4-XDFN with supplier device package 4-USPN (0.90x1.2).
70dB.
