| Category | |
| Manufacturer Name | |
| Accuracy | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Quiescent Current | |
| Temperature Coefficient |
The Torex Semiconductor XC6138NAN06R-G is a voltage detector designed for system reset and battery monitoring. It offers an ultra-low quiescent current of 128nA, making it ideal for power-sensitive applications like wearables and IoT devices.
This device supports a detection voltage range from 1.6V to 5.5V with a high accuracy of ±1.5% at 25°C. It operates within a wide voltage range of 1.3V to 6.0V. A key feature is the Separate Sense Pin, which allows monitoring of high-voltage rails even if the sensed voltage drops to 0V, provided the VIN pin remains within its operating range. The XC6138 series also includes an internal delay circuit that can be extended with an external capacitor for customized reset timing.

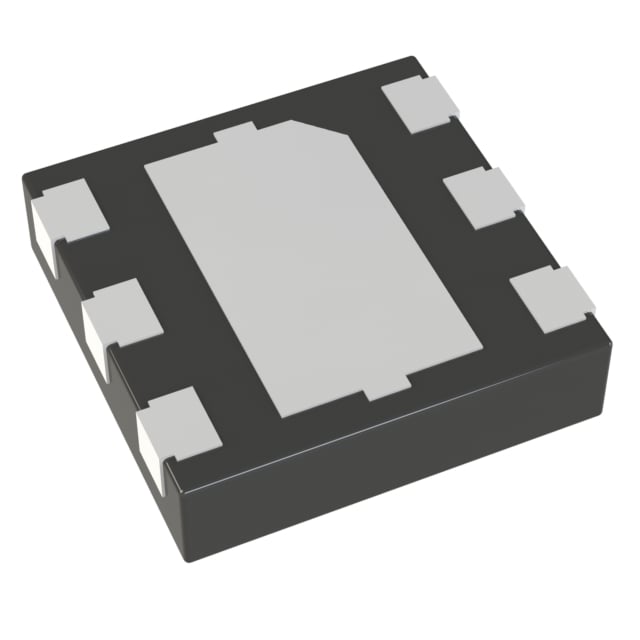

The XC6138NAN06R-G is available in a compact 6-XFDFN Exposed Pad package, suitable for space-constrained designs. Its low temperature coefficient of ±50ppm/°C ensures reliable performance across various industrial environments.
This voltage detector is engineered for reliable system supervision of microcontrollers and digital circuits, preventing system glitches during power-up or brown-out conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The detection voltage range is 1.6V to 5.5V, available in 0.1V increments.
The accuracy is ±1.5% at 25°C.
The typical quiescent current is 128nA.
The operating voltage range is 1.3V to 6.0V.
The temperature coefficient is ±50ppm/°C.
It is available in a 6-XFDFN Exposed Pad package for surface mount mounting.
