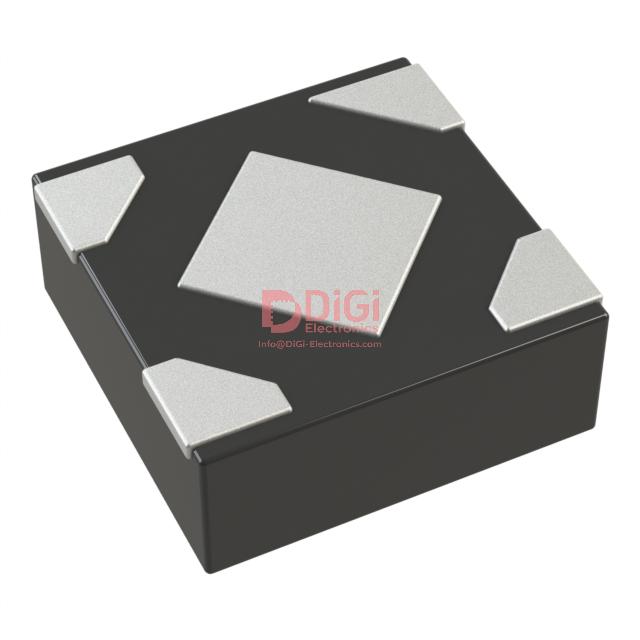

XC6136C12B9R-G The Torex Semiconductor XC6136C12B9R-G is a 1-channel voltage detector IC. It features a 1.2V threshold and active low reset.
Mfr Part #:

XC6136C12B9R-G

Available from 1 distributors
Mfr Name: Torex Semiconductor
Torex Semiconductor
The Torex Semiconductor XC6136C12B9R-G is a 1-channel voltage detector IC. It features a 1.2V threshold and active low reset.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.75

XC6136C12B9R-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC6136C12B9R-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Voltages Monitored
Operating Temperature
Output
Reset
Reset Timeout
Supplier Device Package
Type
Voltage
View Similar Products (0)

XC6136C12B9R-G Description

Short technical summary and product information.

The Torex Semiconductor XC6136C12B9R-G is a voltage detector IC designed for power management applications. It monitors a single voltage level with a threshold of 1.2V and provides an active low reset signal with a typical timeout of 40µs.



This supervisor IC features a push-pull, totem pole output and operates within a temperature range of -40°C to 105°C. It is housed in a compact 4-USPQ-B05 (1x1) package, specifically a 4-XDFN exposed pad, suitable for surface mounting.



Key electrical characteristics include its 1.2V detection voltage and active low reset functionality. The device is suitable for applications requiring reliable voltage monitoring and system reset capabilities.

XC6136C12B9R-G Quick Information

Product Type: Voltage Detector
Series: XC6136C
Canonical Name: Torex Semiconductor XC6136C12B9R-G Voltage Detector
Subcategory: Voltage Detector

XC6136C12B9R-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XC6136C12B9R-G Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC6136C12B9R-G Features

  • Monitors a single voltage level.
  • 1.2V detection voltage threshold.
  • Active low reset signal.
  • Push-pull, totem pole output.
  • Surface mount 4-XDFN package.

XC6136C12B9R-G Applications

  • Use for microcontroller reset generation.
  • Power supply voltage supervision circuits.
  • Battery-powered devices requiring low-voltage monitoring.
  • Industrial equipment needing reliable reset logic.
  • Portable electronics power-fail detection circuits.

XC6136C12B9R-G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the threshold voltage of the XC6136C12B9R-G?

The voltage detector threshold is 1.2V nominal.

What is the reset timeout?

The reset timeout is 40µs typical.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C (ambient).

What type of output does this supervisor provide?

The output type is push-pull, totem-pole.

What is the reset type?

The reset is active low.

What is the package and mounting type?

The device is available in a 4-XDFN exposed-pad package (supplier package 4-USPQ-B05, 1x1) for surface-mount assembly. Packaging is tape and reel.

How many voltages does it monitor?

It monitors one voltage.
