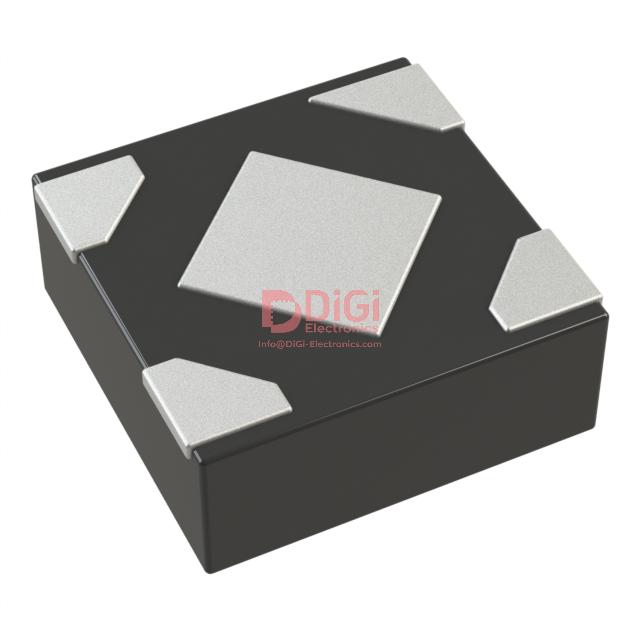

XC6135C45A9R-G The Torex Semiconductor XC6135C45A9R-G is a voltage detector IC. It features a 4.5V threshold and Push-Pull output.
Mfr Part #:

XC6135C45A9R-G

Available from 1 distributors
Mfr Name: Torex Semiconductor
Torex Semiconductor
The Torex Semiconductor XC6135C45A9R-G is a voltage detector IC. It features a 4.5V threshold and Push-Pull output.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.75

XC6135C45A9R-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC6135C45A9R-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Voltages Monitored
Operating Temperature
Output
Reset
Reset Timeout
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

XC6135C45A9R-G Description

Short technical summary and product information.

The Torex Semiconductor XC6135C45A9R-G is an integrated circuit supervisor designed for voltage detection. It monitors a single voltage level with a threshold set at 4.5V. The output stage is configured as Push-Pull, Totem Pole, and the reset function is active low with a typical timeout of 44µs.



This device operates within a temperature range of -40°C to 105°C (TA). It is designed for surface mount installation and comes in a 4-XDFN Exposed Pad package, specifically the USPQ-4B05 supplier device package. The XC6135C45A9R-G is suitable for applications requiring reliable voltage monitoring and reset signal generation.

XC6135C45A9R-G Quick Information

Product Type: Voltage Detector
Canonical Name: XC6135C45A9R-G Voltage Detector
Subcategory: Supervisors

XC6135C45A9R-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XC6135C45A9R-G Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC6135C45A9R-G Features

  • Single voltage monitoring.
  • 4.5V threshold voltage.
  • Push-Pull, Totem Pole output.
  • Active Low reset signal.
  • Surface Mount package.

XC6135C45A9R-G Applications

  • Power supply voltage monitoring.
  • Battery undervoltage detection.
  • Microprocessor reset generation.
  • Industrial control system supervision.
  • Automotive voltage monitoring.

XC6135C45A9R-G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the threshold voltage of the XC6135C45A9R-G?

4.5V.

What is the output type of the XC6135C45A9R-G?

Push-Pull, Totem Pole.

What is the reset type of the XC6135C45A9R-G?

Active Low.

What is the reset timeout of the XC6135C45A9R-G?

44µs typical.

What is the operating temperature range of the XC6135C45A9R-G?

-40°C to 105°C.

What is the package type of the XC6135C45A9R-G?

4-XDFN Exposed Pad (USPQ-4B05).

What is the mounting type of the XC6135C45A9R-G?

Surface Mount.
