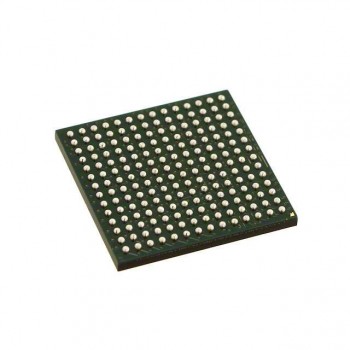

XC56L307VL160 The NXP Semiconductors XC56L307VL160 is a 24-bit fixed-point Digital Signal Processor. It operates at a 160MHz clock rate with a 1.8V core voltage and 3.3V I/O voltage.
Mfr Part #:

XC56L307VL160

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors XC56L307VL160 is a 24-bit fixed-point Digital Signal Processor. It operates at a 160MHz clock rate with a 1.8V core voltage and 3.3V I/O voltage.
✓ Total Stock: 3,156 pcs
$ Price Range: $33.86

XC56L307VL160 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,156 pcs
On Request
3156 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC56L307VL160 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Rate
Interface
Mounting Type
Non
On
Operating Temperature
Operating Voltage
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

XC56L307VL160 Description

Short technical summary and product information.

The NXP Semiconductors XC56L307VL160 is a 24-bit fixed-point Digital Signal Processor (DSP) from the DSP56300 family. It is designed for network applications and general filtering operations, featuring an Enhanced Filter Coprocessor (EFCOP) for accelerated filter algorithms.



Key electrical specifications include a 160MHz internal clock rate, a 1.8V core voltage, and a 3.3V I/O voltage. The device offers 576kB of on-chip RAM and 576B of ROM. It supports interfaces such as Host Interface, SSI, and SCI.



The operating temperature range for this DSP is -40°C to 100°C. It is available in a surface mount package, specifically a 196-LBGA (15x15) configuration.



This processor is suitable for applications requiring significant internal memory and high-performance signal processing, such as in networking and wireless infrastructure.

XC56L307VL160 Quick Information

Product Type: Digital Signal Processor
Series: DSP563xx
Canonical Name: XC56L307VL160 24-Bit Fixed Point Digital Signal Processor
Subcategory: Digital Signal Processors

XC56L307VL160 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XC56L307VL160 Estimated Pricing

Qty Low High
1+ $33.86 $33.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC56L307VL160 Features

  • 24-bit fixed-point digital signal processor.
  • 160MHz clock rate and 160 MMACS performance.
  • 1.8V core voltage and 3.3V I/O voltage.
  • 576kB on-chip RAM and 576B ROM.
  • Surface mount 196-LBGA package.

XC56L307VL160 Applications

  • Suitable for network applications.
  • Ideal for general filtering operations.
  • Supports wireless infrastructure.
  • Used in applications requiring large memory.

XC56L307VL160 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the clock rate of the XC56L307VL160?

The clock rate is 160MHz.

What are the operating voltages for the XC56L307VL160?

The core voltage is 1.8V and the I/O voltage is 3.3V.

What is the operating temperature range of the XC56L307VL160?

The operating temperature range is -40°C to 100°C.

What is the RoHS status of the XC56L307VL160?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the XC56L307VL160?

The Moisture Sensitivity Level is 1 Unlimited.
