XC4VLX25-10FF668C
Advanced Micro Devices
The AMD XC4VLX25-10FF668C is an FPGA with 24192 logic elements and 448 I/O pins. It operates within a temperature range of 0°C to 85°C.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
517 pcs
|
517 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Total RAM Bits | |
| Voltage |

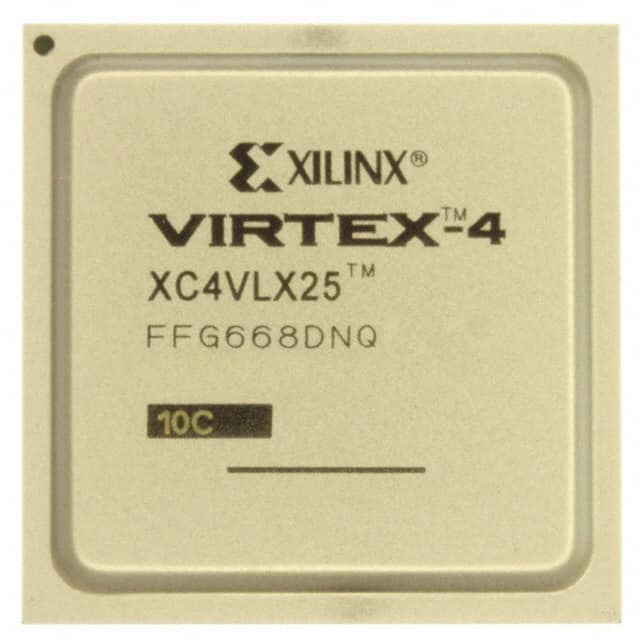

The AMD XC4VLX25-10FFG668C is a Field Programmable Gate Array (FPGA) from the Virtex-4 LX family. It features 24192 logic elements and 2688 Logic Array Blocks (LABs), providing significant capacity for complex digital designs.
This FPGA offers 1327104 total RAM bits for data storage and manipulation. It supports 448 input/output (I/O) pins, enabling extensive connectivity with other system components. The core voltage for this device is 1.2V, with an operating voltage range of 1.14V to 1.26V.
The device operates within a temperature range of 0°C to 85°C (TJ). It is supplied in a 668-FCBGA (Flip Chip Ball Grid Array) package, measuring 27x27mm, and is designed for surface mount installation.
The Virtex-4 family, including this LX variant, is known for its advanced architecture and flexible features, making it a powerful alternative to ASIC technology for various applications.
The XC4VLX25-10FFG668C has 24192 logic elements.
This FPGA has a total of 1327104 RAM bits.
The XC4VLX25-10FFG668C features 448 I/O pins.
The operating temperature range is 0°C to 85°C (TJ).
The core voltage is 1.2V.
It is supplied in a 668-FCBGA (27x27) package.
The operating voltage is between 1.14V and 1.26V.
