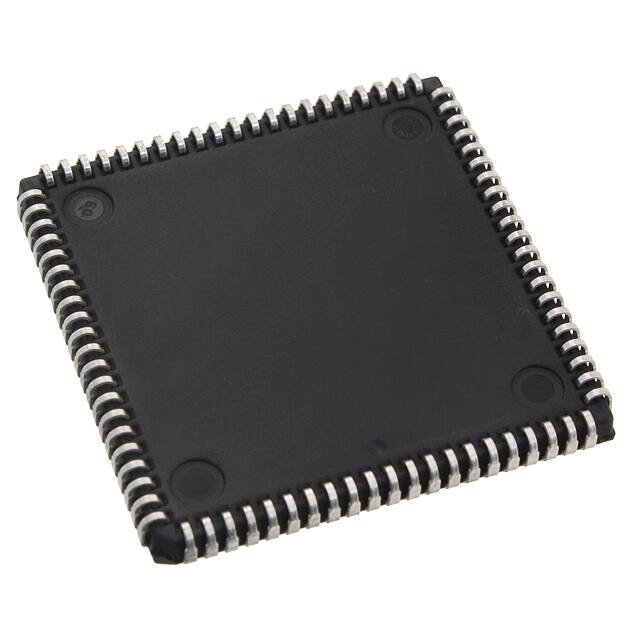

The Xilinx XC4005E-4PC84C is a Field Programmable Gate Array (FPGA) belonging to the XC4000E/X series. This component offers 5000 gates and 466 logic elements/cells, with a total RAM size of 784 bits and 6272 total RAM bits. It provides 61 input/output pins and operates with a supply voltage range of 4.75V to 5.25V, typically 5V, and a clock frequency of 111MHz.
Designed for surface mounting, the XC4005E-4PC84C comes in an 84-LCC (J-Lead) package with a terminal pitch of 1.27mm. The operating temperature range is from 0°C to 85°C (TJ). Environmental considerations include a peak reflow temperature of 225°C with a maximum time of 30 seconds at peak temperature. The component is classified under RoHS3 Compliant status, with an MSL of 1 Unlimited and REACH Unaffected status.
This FPGA is suitable for various embedded applications requiring programmable logic. Its specifications make it a candidate for prototyping and designs where flexible logic implementation is necessary. The surface mountable J-Lead package facilitates integration into printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.15 | $22.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum clock frequency is 111MHz.
It has 61 I/O pins.
The operating voltage range is 4.75V to 5.25V, with a nominal supply of 5V.
It comes in an 84-LCC (J-Lead) surface mount package.
It contains 466 logic elements/cells.
The total RAM is 6272 bits, equivalent to 784 bytes.
The operating temperature range is 0°C to 85°C (junction temperature).
