Mfr Part #:

XC3S250E-4FTG256C

Mfr Name: Xilinx

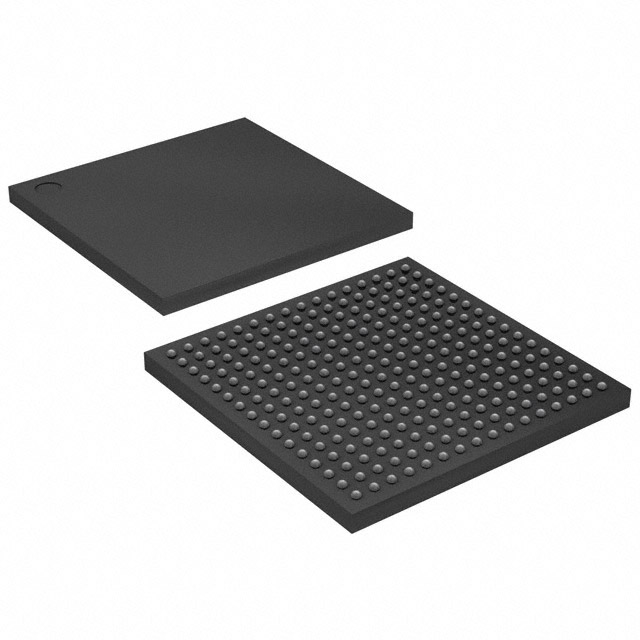

The AMD XC3S250E-4FTG256C is a high-performance Field Programmable Gate Array (FPGA) with 172 I/Os and 250,000 gates. It operates within a temperature range of 0°C to 85°C.

✓ Total Stock: 6,907 pcs

$ Price Range: $22.15

XC3S250E-4FTG256C Available from 5 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	4,018 pcs On Request	4018 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	2,620 pcs On Request	2620 pcs	On Request	1	On Request	On Request	17+	On Request	On Request
Speed Components Ltd ✓ Non-Authorised Inventory information	168 pcs On Request	168 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	86 pcs On Request	86 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Rayichip ✓ Non-Authorised Inventory information	15 pcs On Request	15 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

XC3S250E-4FTG256C Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Xilinx
Lead Spacing	1.0 mm
Lead Style	Ball Grid Array (Bga)
Mounting Type	Surface Mount
Number of Gates	250,000
Number of I/O	172
Voltage Supply	1.14V to 1.26V

View Similar Products (0)

XC3S250E-4FTG256C Description

Short technical summary and product information.

The XC3S250E-4FTG256C is a Field Programmable Gate Array (FPGA) manufactured by AMD. This IC features 172 I/Os and is packaged in a 256-pin Fine Pitch Ball Grid Array (FTBGA), suitable for surface mount applications.

Key technical specifications include 250,000 gates, 5,508 logic elements/cells, and 612 LABs/CLBs, providing significant computational capacity and flexibility. It offers 221,184 bits of RAM for complex data storage and processing. The operating temperature range is 0°C to 85°C (TJ), ensuring reliable performance.

This FPGA is designed for applications requiring high flexibility and configurability, such as telecommunications, industrial control, consumer electronics, automotive systems, medical devices, and aerospace and defense.

Development is supported by AMD's Xilinx ISE Design Suite and SDK, along with reference designs and evaluation kits.

XC3S250E-4FTG256C Quick Information

Product Type: FPGA

Series: Spartan-3E

Canonical Name: XC3S250E-4FTG256C Field Programmable Gate Array

Subcategory: FPGA

XC3S250E-4FTG256C Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

XC3S250E-4FTG256C Estimated Pricing

Qty	Low	High
1+	$22.15	$22.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC3S250E-4FTG256C Features

High-performance Field Programmable Gate Array.
Features 172 input/output pins.
Contains 250,000 programmable gates.
Includes 221,184 bits of RAM.
Operates from 0°C to 85°C.

XC3S250E-4FTG256C Applications

Ideal for telecommunications signal processing.
Suitable for industrial control systems.
Used in consumer electronics embedded systems.
Applicable to automotive infotainment systems.
Supports medical device diagnostics.

XC3S250E-4FTG256C FAQs

6 frequently asked questions generated from this part’s specifications.

How many logic elements does the XC3S250E-4FTG256C have?

5,508 logic elements.

What is the total RAM in the XC3S250E-4FTG256C?

221,184 bits of block RAM.

How many I/O pins does the XC3S250E-4FTG256C provide?

172 I/O pins.

What is the operating voltage range of the XC3S250E-4FTG256C?

1.14V to 1.26V.

What is the system gate count of the XC3S250E-4FTG256C?

250,000 system gates.

What is the package type of the XC3S250E-4FTG256C?

256-FTBGA (Fine-pitch Thin Ball Grid Array).
