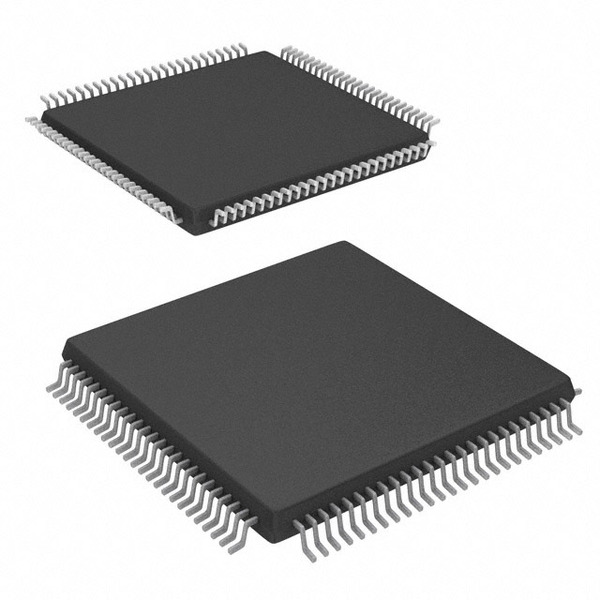

XC3042A-6VQ100C The Xilinx XC3042A-6VQ100C is a Field Programmable Gate Array (FPGA) with 82 I/O pins and 30784 RAM bits. It operates within a supply voltage range of 4.75V to 5.25V.
Mfr Part #:

XC3042A-6VQ100C

Available from 1 distributors
Mfr Name: Xilinx
Xilinx
The Xilinx XC3042A-6VQ100C is a Field Programmable Gate Array (FPGA) with 82 I/O pins and 30784 RAM bits. It operates within a supply voltage range of 4.75V to 5.25V.
✓ Total Stock: 9,040 pcs
$ Price Range: $22.15

XC3042A-6VQ100C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
9,040 pcs
On Request
9040 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC3042A-6VQ100C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mounting Type
Number of Gates
Operating Temperature
Storage Temperature
Supply Voltage
View Similar Products (0)

XC3042A-6VQ100C Description

Short technical summary and product information.

The XC3042A-6VQ100C from Xilinx is a Field Programmable Gate Array (FPGA) belonging to the XC3000A/L series. This integrated circuit offers 82 programmable I/O pins and a total of 30784 RAM bits, making it suitable for flexible digital logic implementation in various embedded applications.



Key electrical specifications include a supply voltage range of 4.75V to 5.25V and 3000 gates. The device features 144 logic blocks (LABs/CLBs) for building custom digital functions. It operates within a temperature range of 0°C to 85°C (TJ).



The XC3042A-6VQ100C is provided in a 100-VQFP (14x14 mm) package, designed for surface mount applications. This packaging facilitates easy PCB mounting. The device is classified under the embedded FPGA category, suitable for a wide array of electronic designs requiring programmable logic solutions.

XC3042A-6VQ100C Quick Information

Product Type: FPGA
Series: XC3000A/L
Canonical Name: XC3042A-6VQ100C Field Programmable Gate Array
Subcategory: Embedded FPGAs

XC3042A-6VQ100C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 hours)
REACH Status: Unaffected

XC3042A-6VQ100C Estimated Pricing

Qty Low High
1+ $22.15 $22.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC3042A-6VQ100C Features

  • 82 programmable I/O pins available.
  • 30784 bits of total RAM.
  • Features 144 logic blocks (CLBs).
  • Operates at 4.75V to 5.25V.
  • Surface mountable 100-VQFP package.

XC3042A-6VQ100C Applications

  • Ideal for prototyping digital logic circuits.
  • Used in control and state machine designs.
  • Suitable for glue logic in embedded systems.
  • Applicable in low-to-medium complexity FPGA projects.

XC3042A-6VQ100C FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage for the XC3042A-6VQ100C?

The supply voltage is 4.75V to 5.25V.

How many I/O pins does the XC3042A-6VQ100C have?

It has 82 programmable I/O pins.

What is the total RAM size in bits for this FPGA?

The total RAM size is 30784 bits.

How many logic blocks (CLBs) are in the XC3042A-6VQ100C?

There are 144 logic blocks (LABs/CLBs).

What is the operating temperature range for this device?

The operating temperature range is 0°C to 85°C (TJ).

What type of package is the XC3042A-6VQ100C in?

It comes in a 100-VQFP (14x14) package.
