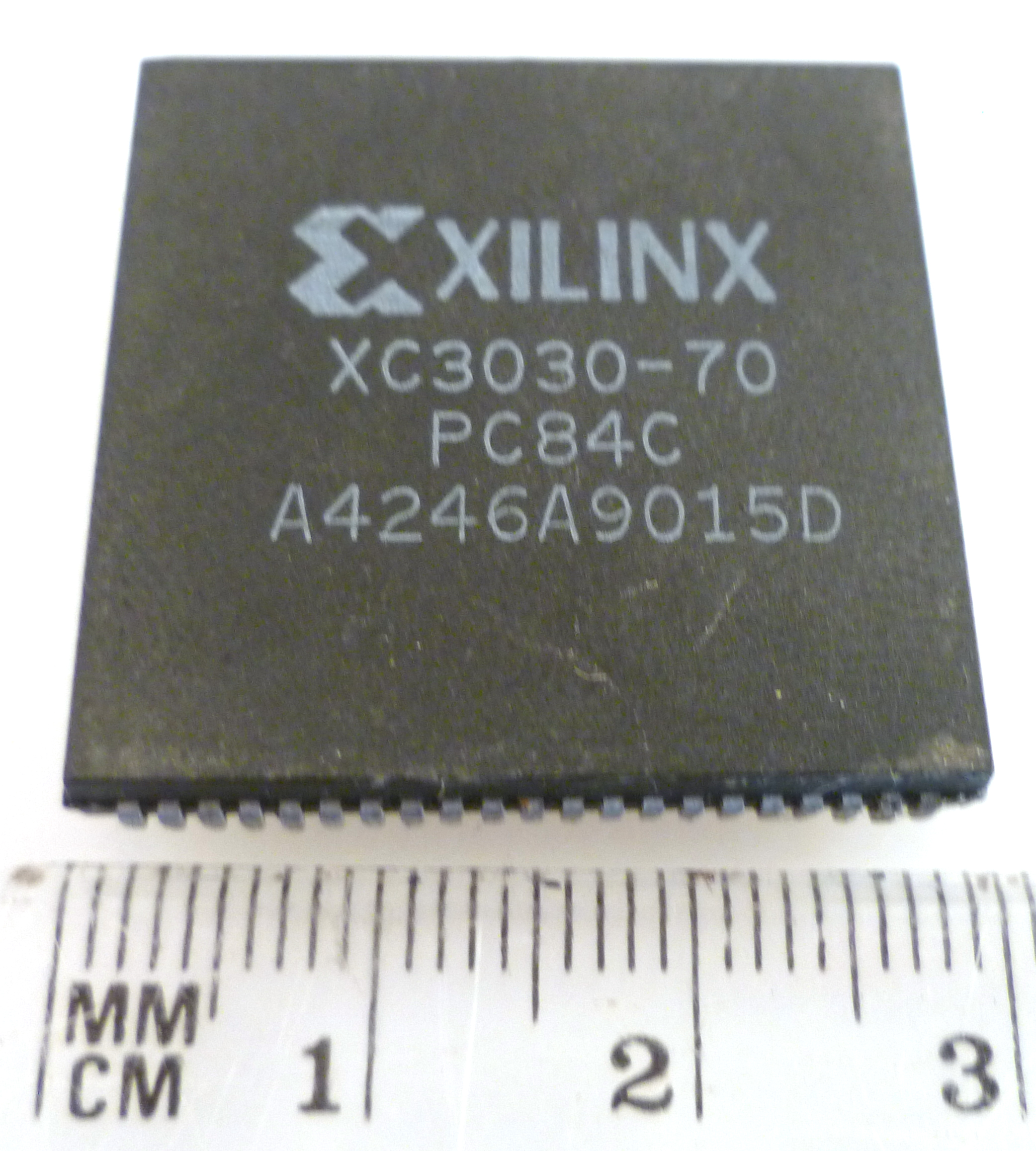

XC3030-70-PC84C The Xilinx XC3030-70-PC84C is a Field Programmable Gate Array with a maximum clock frequency of 70 MHz. It features 1500 equivalent gates and operates at a nominal supply voltage of 5V.
Mfr Part #:

XC3030-70-PC84C

Available from 1 distributors
Mfr Name: Xilinx
Xilinx
The Xilinx XC3030-70-PC84C is a Field Programmable Gate Array with a maximum clock frequency of 70 MHz. It features 1500 equivalent gates and operates at a nominal supply voltage of 5V.
✓ Total Stock: 1 pcs
$ Price Range: $0.50

XC3030-70-PC84C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC3030-70-PC84C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Length
Mounting Type
Number of Inputs
Number of Outputs
Storage Temperature
Tape & Reel
Technology
Width
View Similar Products (0)

XC3030-70-PC84C Description

Short technical summary and product information.

The Xilinx XC3030-70-PC84C is a Field Programmable Gate Array (FPGA) designed for various digital logic applications. This component offers a maximum clock frequency of 70.0 MHz and a combinatorial delay of a CLB of 9.0 ns.



Key specifications include 100 CLBs, 1500 equivalent gates, and 74 inputs/outputs. The device operates within a supply voltage range of 4.75V to 5.25V, with a nominal voltage of 5.0V. It is built using CMOS technology.



The XC3030-70-PC84C comes in an 84-pin plastic LCC package, suitable for surface mounting. The terminals have a J-bend form and a pitch of 1.27 mm. The package dimensions are approximately 29.31 mm by 29.31 mm. Additional features include 360 flip-flops and a low power-down supply current of 80uA.

XC3030-70-PC84C Quick Information

Product Type: Field Programmable Gate Array
Canonical Name: Xilinx XC3030-70-PC84C Field Programmable Gate Array
Subcategory: PLDs (Programmable Logic Device)

XC3030-70-PC84C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XC3030-70-PC84C Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC3030-70-PC84C Features

  • Maximum clock frequency of 70 MHz.
  • 1500 equivalent gates and 100 CLBs.
  • Operates at a 5V nominal supply voltage.
  • 84-pin plastic LCC surface mount package.
  • CMOS technology for efficient operation.

XC3030-70-PC84C Applications

  • Suitable for programmable logic applications in embedded systems.
  • Used in digital signal processing and control circuits.
  • Ideal for custom FPGA-based project development.
  • Applicable in aerospace and military electronic systems.

XC3030-70-PC84C FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum clock frequency of the Xilinx XC3030-70-PC84C?

The maximum clock frequency is 70.0 MHz.

How many equivalent gates does the Xilinx XC3030-70-PC84C have?

It has 1500 equivalent gates.

What is the operating voltage range for the Xilinx XC3030-70-PC84C?

The operating voltage range is 4.75V to 5.25V, with a nominal voltage of 5.0V.

What type of package is the Xilinx XC3030-70-PC84C in?

It is in an 84-pin plastic LCC package.

What is the operating temperature range for this FPGA?

The operating temperature range is from 0.0°C to 85.0°C.
