| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,000 pcs
|
16000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of I/O | |
| Number of LABs | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package | |
| Technology | |
| Total RAM Bits | |
| Voltage |

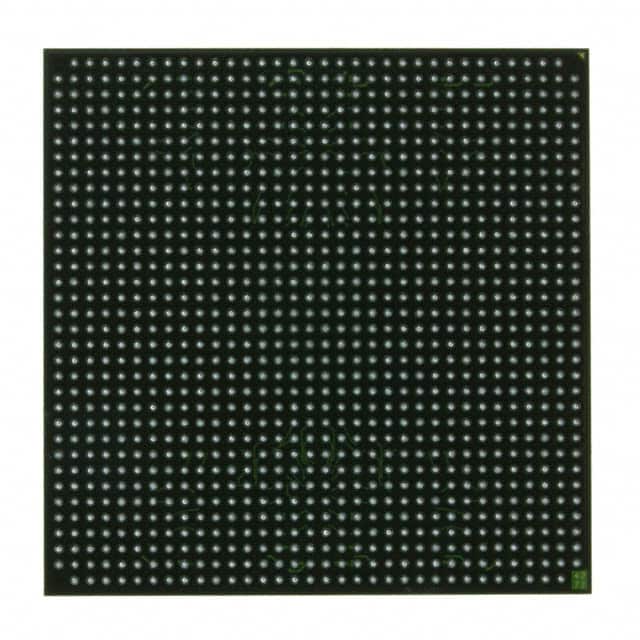

The XC2V3000-4FF1152I is a Field Programmable Gate Array (FPGA) from Advanced Micro Devices, part of the Virtex-II family. This device is designed for high-performance applications, offering a density of 3 million gates and supporting up to 720 I/O pins. It operates at a voltage range of 1.425V to 1.575V and has an operating temperature range of -40°C to 100°C (TJ).
The Virtex-II architecture is optimized for high speed with low power consumption, utilizing a 0.15 µm / 0.12 µm CMOS process. Key features include 1769472 total RAM bits and 3584 logic array blocks (LABs). The device is housed in a 1152-pin FCBGA package and is surface-mounted.
This FPGA is suitable for telecommunication, wireless, networking, video, and DSP applications. It supports interfaces such as PCI, LVDS, and DDR. The XC2V3000-4FF1152I is an alternative to mask-programmed gate arrays, providing enhanced programmable logic design capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.20 | $21.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The XC2V3000-4FF1152I FPGA has 1769472 total RAM bits.
The XC2V3000-4FF1152I has 3584 logic array blocks (LABs).
The operating voltage for the XC2V3000-4FF1152I FPGA is between 1.425V and 1.575V.
The XC2V3000-4FF1152I comes in a 1152-FCBGA (35x35) package.
The operating temperature range for the XC2V3000-4FF1152I is -40°C to 100°C (TJ).
The XC2V3000-4FF1152I FPGA uses a 0.15 µm / 0.12 µm CMOS technology.
The XC2V3000-4FF1152I has an internal clock speed of 650MHz.
