| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Total RAM Bits | |
| Voltage |
The XC2S100E-6PQG208C is a member of the Spartan-IIE FPGA family, designed by AMD. This device provides a robust platform for digital logic applications, featuring 2,700 logic elements and 600 logic array blocks (LABs/CLBs).
Key electrical specifications include a total of 40,960 bits of RAM, with 38,400 bits dedicated to distributed RAM and 40 Kbit for embedded block RAM. It supports 146 user I/O pins and operates within a supply voltage range of 1.71V to 1.89V. The device is fabricated using a 0.15 µm CMOS process.

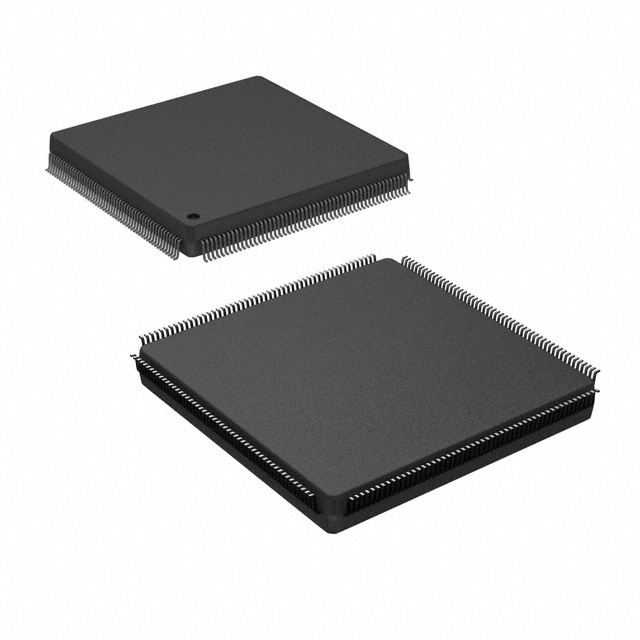

This FPGA is housed in a 208-PQFP (Plastic Quad Flat Pack) package, designed for surface mounting. It operates across a commercial temperature range of 0°C to 85°C. The Spartan-IIE family is known for offering high performance and abundant logic resources at a low cost, making it suitable for cost-sensitive digital logic applications.
Development for this FPGA is supported by Xilinx ISE WebPACK design tools, facilitating a streamlined development flow from prototype to production. Its features include multiple selectable I/O standards and dedicated Delay-Locked Loops (DLLs) for clock management.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.20 | $21.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The XC2S100E-6PQG208C has 2,700 logic elements.
The XC2S100E-6PQG208C offers 146 user I/O pins.
The operating voltage range for the XC2S100E-6PQG208C is 1.71V to 1.89V.
The XC2S100E-6PQG208C is available in a 208-PQFP package.
The operating temperature range for this FPGA is 0°C to 85°C.
The XC2S100E-6PQG208C has a total of 40,960 bits of RAM.
