XC2S1005PQG208C The Xilinx XC2S1005PQG208C is a Spartan-II series FPGA with 100,000 gates and 140 I/O pins. It features 40960 RAM bits and operates within a voltage range of 2.375V to 2.625V.
Mfr Part #:

XC2S1005PQG208C

Available from 1 distributors
Mfr Name: Xilinx
Xilinx
The Xilinx XC2S1005PQG208C is a Spartan-II series FPGA with 100,000 gates and 140 I/O pins. It features 40960 RAM bits and operates within a voltage range of 2.375V to 2.625V.
✓ Total Stock: 4 pcs

XC2S1005PQG208C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC2S1005PQG208C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Mounting Type
Number of Gates
Number of I/O
Operating Temperature
Package / Case
SVHC Present
Supplier Device Package
View Similar Products (0)

XC2S1005PQG208C Description

Short technical summary and product information.

The Xilinx XC2S1005PQG208C is an FPGA from the Spartan-II family, designed for embedded applications. This integrated circuit offers 100,000 gates and provides 140 input/output pins, making it suitable for various digital logic tasks.



Key electrical specifications include a total of 40,960 RAM bits and an operating supply voltage range of 2.375V to 2.625V. The device operates reliably within an ambient temperature range of 0°C to 85°C.

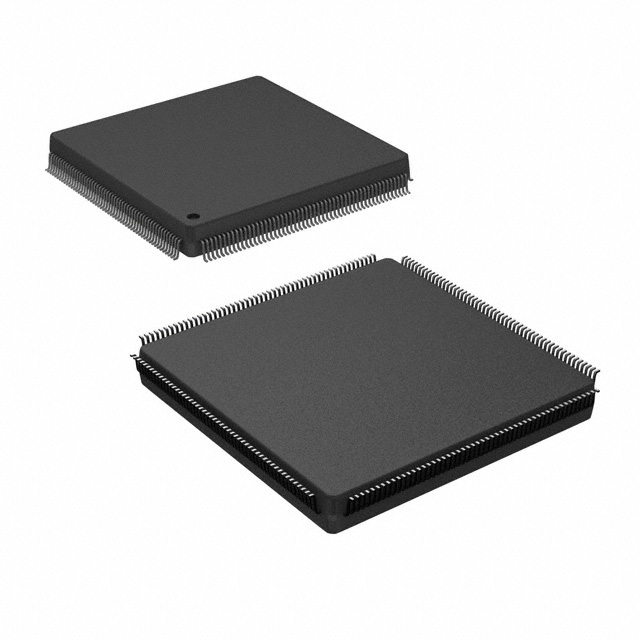

Packaged in a 208-PQFP (28x28) format, the XC2S1005PQG208C is designed for surface mounting. It features 600 LABs/CLBs and 2,700 logic elements/cells, providing significant programmable logic capacity for complex designs.

XC2S1005PQG208C Quick Information

Product Type: FPGA
Series: Spartan-II
Canonical Name: Xilinx XC2S1005PQG208C FPGA
Subcategory: Field Programmable Gate Array

XC2S1005PQG208C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XC2S1005PQG208C Features

  • 100,000 gates FPGA
  • 140 input/output pins
  • 40,960 RAM bits capacity
  • 2.375V to 2.625V supply voltage
  • Surface mount 208-PQFP package

XC2S1005PQG208C Applications

  • Suitable for embedded logic integration.
  • Provides I/O expansion for processor boards.
  • Fits surface-mount PCB assembly processes.
  • Useful in 2.5 V digital systems.

XC2S1005PQG208C FAQs

7 frequently asked questions generated from this part’s specifications.
How many logic elements does the XC2S1005PQG208C have?

It has 2,700 logic elements/cells and 600 LABs/CLBs.

How many I/O pins does the XC2S1005PQG208C provide?

It provides 140 user I/O pins.

What is the supply voltage range for the XC2S1005PQG208C?

The supply voltage range is 2.375 V to 2.625 V.

What package is the XC2S1005PQG208C available in?

It is available in a 208-PQFP surface-mount package with supplier device package 208-PQFP (28x28).

What is the operating temperature range of the XC2S1005PQG208C?

It operates from 0°C to 85°C.

How much RAM does the XC2S1005PQG208C include?

It includes 40,960 total RAM bits.

How many gates does the XC2S1005PQG208C have?

It has 100,000 gates.
