| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,701 pcs
|
7701 pcs | On Request | 1 | On Request | On Request | 1425+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Clock Rate | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Gates | |
| Number of Pins | |
| Propagation Delay | |
| Storage Temperature | |
| Tape & Reel | |
| Technology | |
| Width |

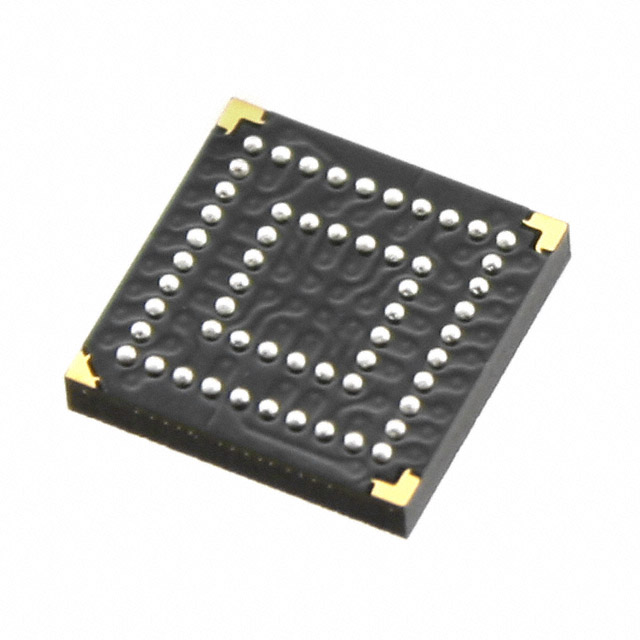

The XC2C64A-5CP56C from Xilinx is a Complex Programmable Logic Device (CPLD) belonging to the CoolRunner-II family. This component offers 1500 gates and 64 macrocells, making it suitable for various digital logic applications.
It operates with a supply voltage between 1.7V and 1.9V and has a maximum operating temperature of 70°C, with a minimum of 0°C. The device supports a maximum frequency of 263 MHz and a clock rate of 333 MHz, with a propagation delay of 5 ns.
Designed for surface mounting, the XC2C64A-5CP56C comes in a 56-pin CSBGA package. It has 45 input/output pins and features a terminal pitch of 500 µm. The technology used is 0.18um CMOS.
This CPLD is currently in production status. It is specified with RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The XC2C64A-5CP56C has 1500 gates.
The XC2C64A-5CP56C has 64 macrocells.
The operating supply voltage range is 1.7V to 1.9V.
The maximum operating temperature is 70°C.
The XC2C64A-5CP56C is in a 56-pin CSBGA package for surface mounting.
The maximum frequency is 263 MHz.
