| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,829 pcs
|
25829 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| SVHC Present | |
| Voltage Supply |

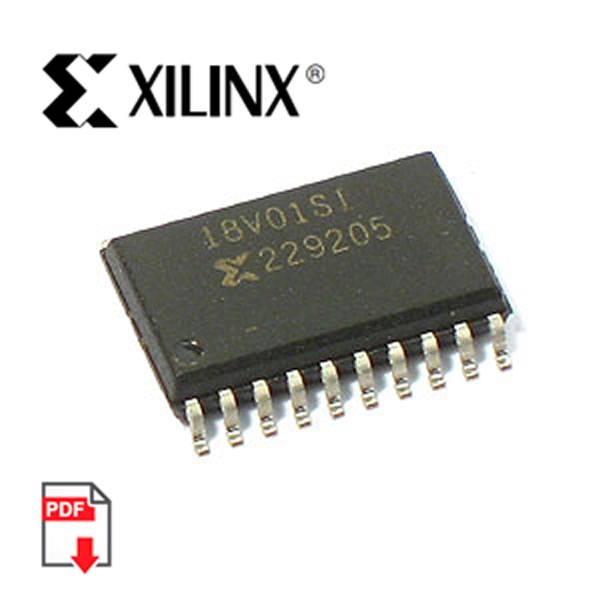

The Xilinx XC18V01-S020I is an in-system programmable configuration PROM, suitable for storing Xilinx FPGA and CPLD configuration bitstreams. This 3.3V device simplifies reprogramming and configuration processes.
Key features include an endurance of 20,000 program/erase cycles and a data retention of 20 years. It supports dual configuration modes: Serial Slow/Fast configuration up to 33 MHz and Parallel configuration up to 264 Mb/s at 33 MHz. The I/O pins are 5V tolerant, accepting 5V, 3.3V, and 2.5V signals, with output capability at 3.3V or 2.5V.
This PROM is designed for easy interfacing with FPGAs and can be cascaded for storing longer or multiple bitstreams. It is manufactured using an advanced CMOS FLASH process. The device comes in a SOIC 20 package, suitable for surface mount technology.
The XC18V01S020I is compatible with other members of the XC18V00 Series family and the XC17V00 one-time programmable Serial PROM family. It operates over the full industrial voltage and temperature range.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3V.
SOIC-20.
20,000 program/erase cycles.
20 years.
Serial slow/fast (up to 33 MHz) and parallel (up to 264 Mb/s at 33 MHz).
5V, 3.3V, and 2.5V.
3.3V or 2.5V.
