| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
110 pcs
|
110 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Insertion Loss | |
| VSWR |

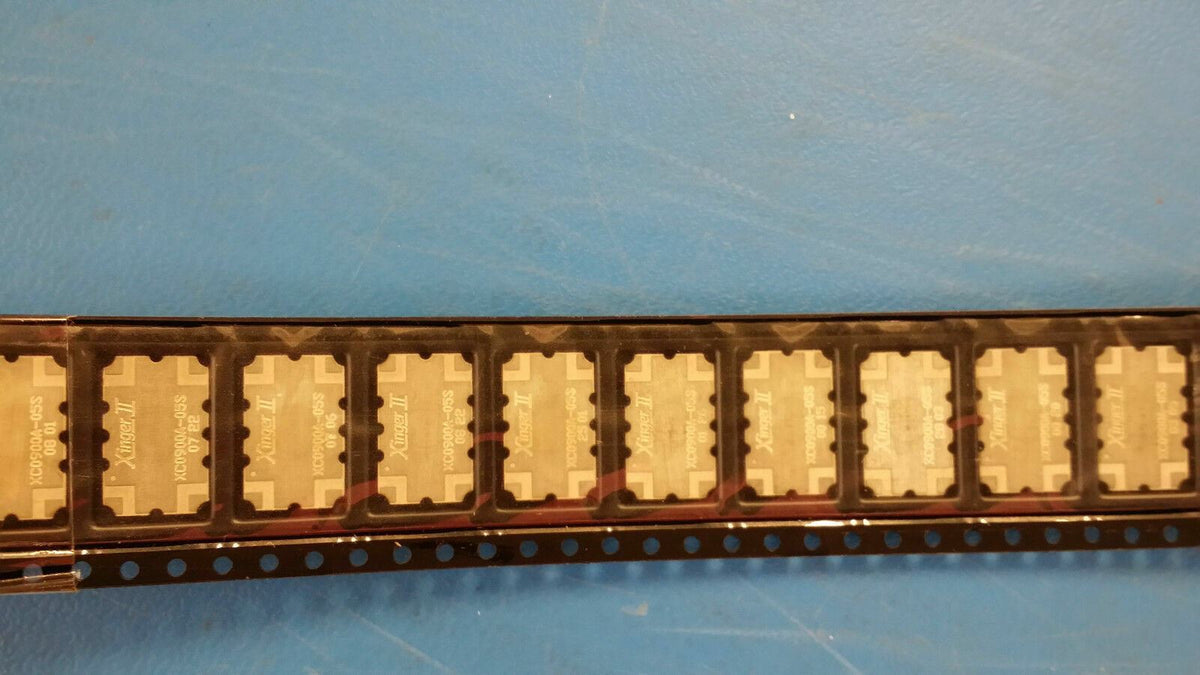

The Anaren, Inc. XC0900A-05S is a uni-directional RF directional coupler designed for applications requiring precise signal division. It operates across a frequency range of 800 MHz to 1000 MHz, offering a nominal coupling of 5 dB.
This component features a maximum insertion loss of 0.19 dB and a maximum VSWR of 1.19, ensuring minimal signal degradation and efficient power transfer. The characteristic impedance is 50 ohms, making it suitable for standard RF systems. The maximum input power handling capability is 53.98 dBm (CW).
With an operating temperature range from -55°C to 95°C, the XC0900A-05S is built for robust performance in various environmental conditions. The terminal finish is TIN, and it comes in a ROHS COMPLIANT PACKAGE-4.
This RF directional coupler is ideal for use in RF signal routing, power monitoring, and signal sampling within telecommunications, radar, and test equipment. Its construction as a component ensures straightforward integration into circuit designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The XC0900A-05S operates from 800 MHz to 1000 MHz.
The coupling value for the XC0900A-05S is 5 dB.
The maximum insertion loss for the XC0900A-05S is 0.19 dB.
The characteristic impedance is 50 ohms.
The operating temperature range is -55°C to 95°C.
The RoHS status is RoHS3 Compliant.
The REACH status is REACH Unaffected.
