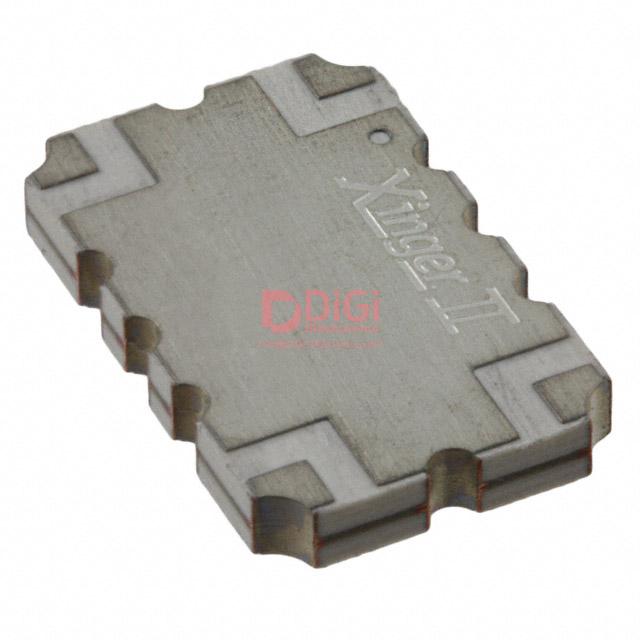

XC0900A-03S-R The Anaren Microwave XC0900A-03S-R is an RF Directional Coupler operating from 811MHz to 1GHz. It offers a 3dB coupling factor and a maximum power rating of 175W.
Mfr Part #:

XC0900A-03S-R

Available from 3 distributors
Mfr Name: Anaren Microwave Inc.
Anaren Microwave Inc.
The Anaren Microwave XC0900A-03S-R is an RF Directional Coupler operating from 811MHz to 1GHz. It offers a 3dB coupling factor and a maximum power rating of 175W.
✓ Total Stock: 5,311 pcs
$ Price Range: $0.99

XC0900A-03S-R Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,909 pcs
On Request
1909 pcs On Request 1 On Request On Request 11+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,701 pcs
On Request
1701 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,701 pcs
On Request
1701 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC0900A-03S-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Coupler Type
Coupling Factor
Failure Rate
Frequency
Insertion Loss
Isolation
Lead Style
Return Loss
Supplier Device Package
Tape & Reel
View Similar Products (0)

XC0900A-03S-R Description

Short technical summary and product information.

This RF Directional Coupler, part number XC0900A-03S-R from Anaren Microwave, is designed for AMPS applications. It operates within a frequency range of 811MHz to 1GHz, featuring a standard coupling factor of 3dB.



The device boasts a low insertion loss of 0.15dB and a maximum power handling capability of 175W. Key electrical characteristics include an isolation of 23dB and a return loss of 24.9dB.



Packaged in a 4-SMD, No Lead configuration, this component is suitable for surface mounting. The series is identified as Xinger II, and the product status is active, indicating its current availability for new designs.

XC0900A-03S-R Quick Information

Product Type: RF Directional Coupler
Series: Xinger II
Canonical Name: XC0900A-03S RF Directional Coupler 811MHz ~ 1GHz 3dB 175W

XC0900A-03S-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XC0900A-03S-R Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC0900A-03S-R Features

  • Operates from 811MHz to 1GHz frequency.
  • Features a 3dB coupling factor.
  • Handles a maximum power of 175W.
  • Low insertion loss of 0.15dB.
  • Surface mount 4-SMD, No Lead package.

XC0900A-03S-R Applications

  • Suitable for AMPS applications.
  • Used in RF signal path designs.
  • Ideal for power monitoring circuits.
  • Component for signal splitting tasks.

XC0900A-03S-R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency range of the XC0900A-03S-R?

The XC0900A-03S-R operates from 811MHz to 1GHz.

What is the coupling factor of this coupler?

The nominal coupling factor is 3dB.

What is the maximum power handling of the XC0900A-03S-R?

The maximum power handling is 175W.

What is the insertion loss of this RF coupler?

The typical insertion loss is 0.15dB.

What package type does the XC0900A-03S-R use?

It uses a 4-SMD, No Lead package with an SMD supplier device package.

What is the isolation of the XC0900A-03S-R?

The typical isolation is 23dB.

What series does this coupler belong to?

It is part of the Xinger II series.
