| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Type | |
| Voltage |

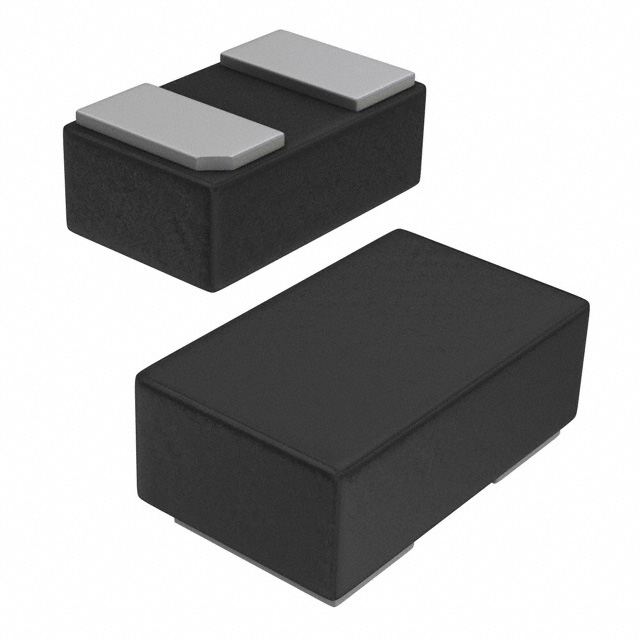

The XBP06V0U25R-G is a bidirectional Zener TVS diode from Torex Semiconductor, designed for ESD protection in high-speed data interfaces. It has a reverse standoff voltage of 5V and a clamping voltage of 14V at a peak pulse current of 2A (8/20µs waveform). With an ultra-low capacitance of just 0.25pF at 1MHz, this device is ideal for protecting sensitive signal lines in DVI, HDMI, and USB applications without degrading signal integrity. The diode comes in a compact surface mount 0402 (1006 Metric) package with supplier package designation FBP1006-2A, making it suitable for space-constrained designs. It operates over a wide temperature range of -55°C to 125°C. Note that this device does not provide power line protection; it is intended solely for signal line ESD suppression.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.24 | $0.24 |
| 100+ | $0.15 | $0.15 |
| 500+ | $0.12 | $0.12 |
| 1,000+ | $0.10 | $0.10 |
| 2,500+ | $0.10 | $0.10 |
| 5,000+ | $0.09 | $0.09 |
| 10,000+ | $0.08 | $0.08 |
| 20,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V.
14V.
2A (8/20µs waveform).
0402 (1006 Metric) surface mount package with supplier package FBP1006-2A.
0.25pF at 1MHz.
Yes, it has 1 bidirectional channel.
DVI, HDMI, and USB interfaces.
