Mfr Part #:

XB6AE3B1B

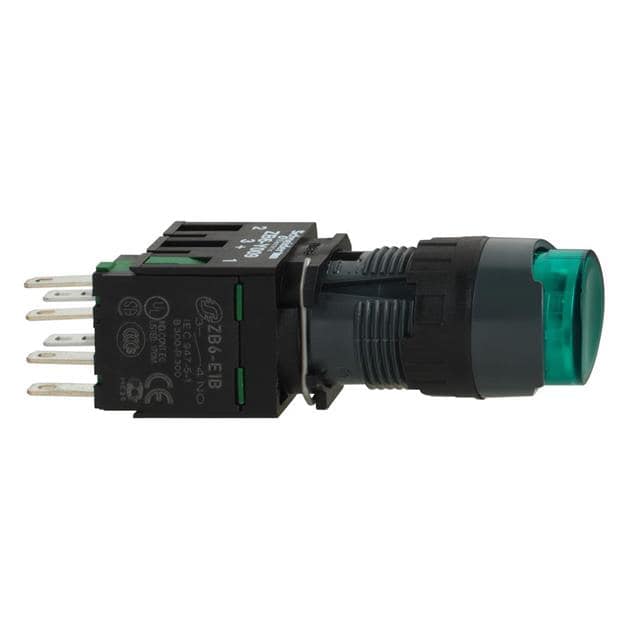

Name: XB6AE3B1B
Brand: Schneider Electric
SKU: XB6AE3B1B

Mfr Name: Schneider Electric

Description:

COMPLETE ILLUMINATED PUSH BUTTON

Stock on Request

XB6AE3B1B Description

Short technical summary and product information.

COMPLETE ILLUMINATED PUSH BUTTON

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

XB6AF3B1B

Schneider Electric

COMPLETE ILLUMINATED PUSH BUTTON

Category	Pushbutton Switches
Manufacturer Name	Schneider Electric
Actuator Type	Round, Button, Flush
Circuit	SPST-NO
Color	Green
Current Rating (Amps)	3A (AC), 220mA (DC)
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature	-25°C ~ 70°C
Panel Cutout Dimensions	Circular - 16.00mm Dia
Switch Function	On-Off
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Standard, Illuminated
Voltage Rating	120 V
