| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Ingress Protection | |
| Lead Spacing | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Mounting Type | |
| Panel Cutout Dimensions | |
| Panel Cutout Shape | |
| Ratings | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

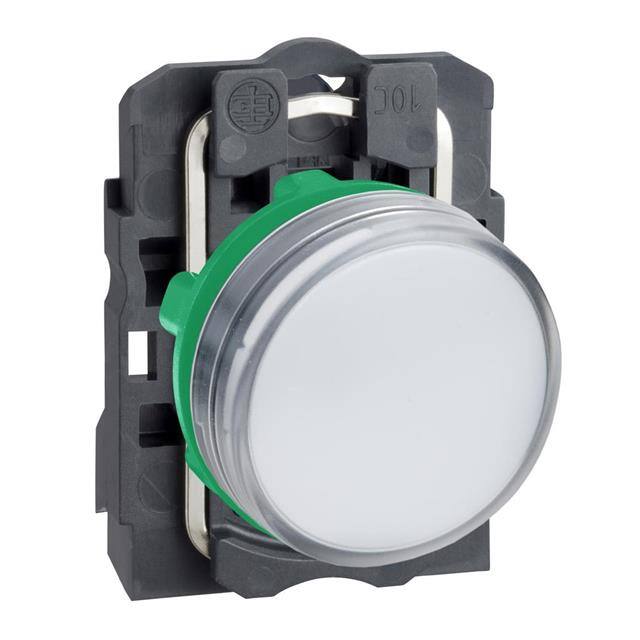

The Schneider Electric XB5AVB1 is a pilot light from the Harmony XB5 series, designed for panel mounting. This component features a white LED indicator with a convex top lens, measuring 30mm in diameter. It is rated for 24V AC/DC operation and draws a current of 18mA. The panel cutout required is 22mm (0.87 inches) in diameter, and the termination style is screw terminal.
This pilot light offers robust environmental protection with an Ingress Protection rating of IP66, IP67, IP69, IP69K, and NEMA 4X, 13. It is suitable for various industrial applications where clear visual indication is necessary. The component is designed for reliable performance and easy integration into control panels.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. The specific part number for this unit is XB5AVB1, with a distributor part number of 4008-XB5AVB1-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The XB5AVB1 pilot light operates at 24V AC/DC.
The panel cutout size for the XB5AVB1 pilot light is 22.00mm (0.87 inches).
The XB5AVB1 pilot light has an ingress protection rating of IP66, IP67, IP69, IP69K, NEMA 4X, and 13.
The lens color of the XB5AVB1 pilot light is white.
The XB5AVB1 pilot light uses screw terminal termination.
The current rating for the XB5AVB1 pilot light is 18mA.
