| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Ingress Protection | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

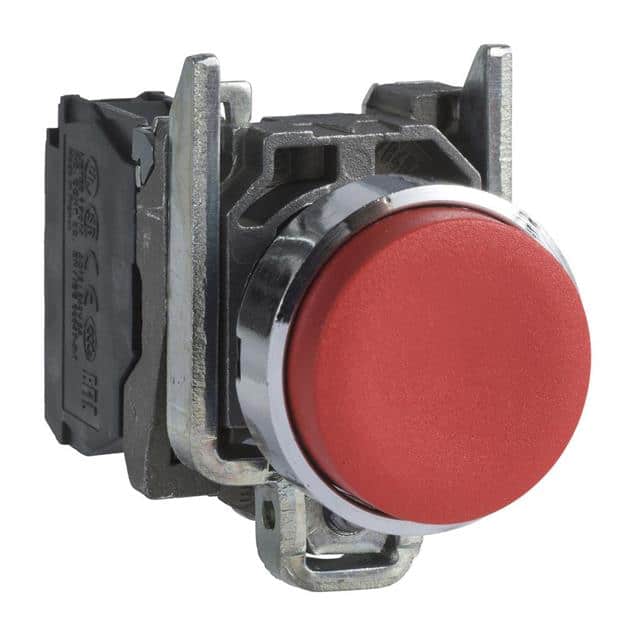

The Schneider Electric Harmony XB4BL42 is a modular pushbutton switch designed for industrial control applications. This model features a red, projecting actuator with a spring return mechanism and a standard head type.
Key electrical specifications include a 1 NC (Normally Closed) contact configuration, a rated operational voltage of 120V AC, and a current rating of 6A AC / 550mA DC. The switch is designed for panel mounting with a standard 22mm diameter cutout.
Constructed with a chromium-plated metal bezel and Zamak fixing collar, this pushbutton is built for durability. It offers a mechanical durability of 10,000,000 cycles and an ingress protection rating of IP66/IP67/IP69/IP69K, making it suitable for harsh environments. Connections are made via screw clamp terminals.
This push button provides an ergonomic interface for controlling machines and processes. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant, making it ideal for operation in harsh environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 70°C.
The XB4BL42 has a 1 NC (Normally Closed) contact configuration.
A 22mm diameter panel cutout is required for the XB4BL42.
The ingress protection rating is IP66/IP67/IP69/IP69K.
The mechanical durability is 10,000,000 cycles.
The rated operational current at 120V AC (AC-15, A600) is 6A.
The RoHS status is RoHS3 Compliant.
